| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

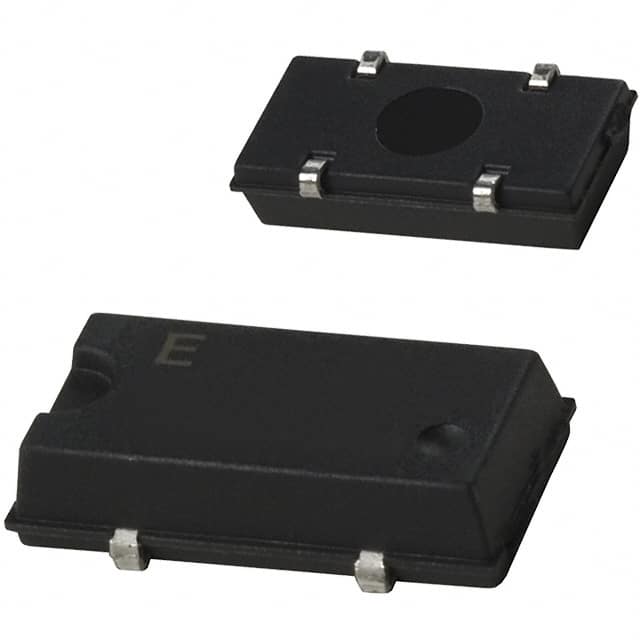

The Epson SG-636PCE 8.0000MC0 is a surface-mount crystal oscillator (XO) from the SG-636 series. It provides a nominal output frequency of 8 MHz with CMOS logic levels. The oscillator operates from a 3.3 V supply voltage with a tolerance of ±0.3 V and draws a maximum supply current of 9 mA under no load.
Frequency stability is specified at ±100 ppm over the operating temperature range of -20°C to +70°C. The device features an Enable/Disable function (Output Enable) and offers a symmetry of 45% to 55% at the 50% VCC level. Rise and fall times are 5 ns maximum (20% to 80% VCC).
The SG-636PCE is housed in a 4-SOJ package with 5.08 mm pitch, measuring 10.50 mm x 5.00 mm with a maximum height of 2.70 mm. It is designed for surface mount assembly and is suitable for general-purpose timing applications requiring a stable CMOS clock source.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output frequency is 8 MHz.
The nominal supply voltage is 3.3 V with a tolerance of ±0.3 V.
The operating temperature range is -20°C to +70°C.
It uses a 4-SOJ surface mount package with 5.08 mm pitch, dimensions 10.50 mm x 5.00 mm x 2.70 mm.
The frequency stability is ±100 ppm maximum.
The output logic is CMOS.
