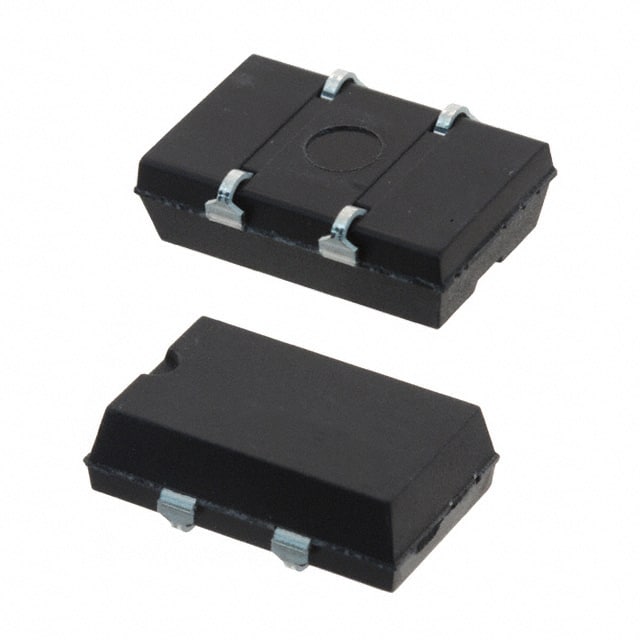

The SG-615PH 33.0000MC0 is a crystal oscillator from Epson's SG-615P series. It provides a stable 33 MHz output with CMOS logic levels. The oscillator operates with a 5V supply voltage and draws a maximum of 35 mA under no load conditions. Frequency stability is ±100 ppm over the -20°C to 70°C operating temperature range.
This oscillator features an enable/disable function for output control. Rise and fall times are 8 ns maximum, and startup time is 4 ms maximum. The duty cycle is 40% to 60%. The device is housed in a 4-SOJ package with a 5.08mm pitch, measuring 14.00 mm x 8.65 mm x 4.70 mm. It is designed for surface mount assembly with J-lead terminations.
The SG-615PH 33.0000MC0 is suitable for general purpose timing applications in digital systems, including microprocessors, communication equipment, and industrial controls. Tape and reel packaging is available for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output frequency is 33 MHz.
The supply voltage is 5 V.
The operating temperature range is -20°C to 70°C.
The package is 4-SOJ with a 5.08mm pitch, surface mount.
Frequency stability is ±100 ppm.
The output logic is CMOS.
RoHS3 compliance is indicated but unverified; datasheet does not explicitly state RoHS status.
