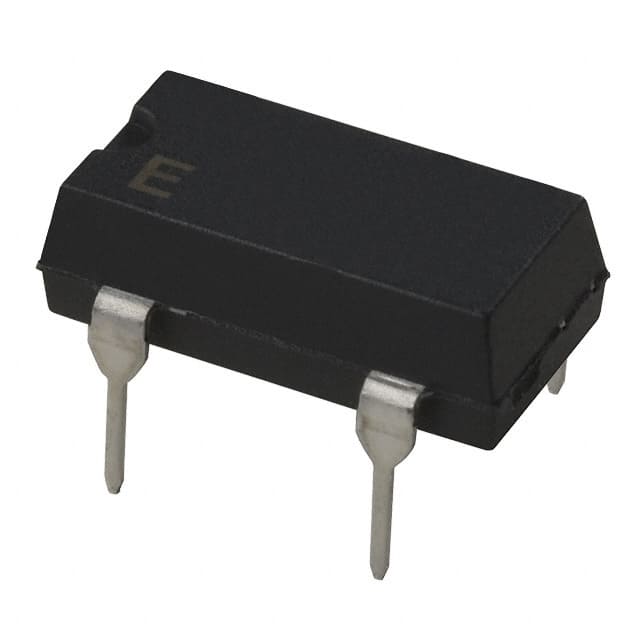

The Epson SG-531P 14.7456MC:ROHS is a crystal oscillator (XO) providing a precise 14.7456 MHz reference clock. It operates from a 5V supply and draws a typical current of 23mA. The output is compatible with both CMOS and TTL logic levels, making it suitable for interfacing with a wide range of digital circuits. The frequency stability is rated at ±100ppm over the operating temperature range of -20°C to +70°C. An enable/disable function allows for output control, reducing power consumption in idle modes.
This oscillator is housed in an 8-DIP package with 4 leads in a half-size format, measuring 13.70mm x 6.60mm x 5.30mm. The through-hole mounting style ensures reliable mechanical attachment on printed circuit boards. The base resonator is a crystal, providing a stable and accurate frequency source.
Typical applications include microprocessor clock sources, communication equipment, test and measurement instruments, and other digital systems requiring a precise clock. The CMOS/TTL output compatibility simplifies integration with both legacy and modern logic families. With its robust frequency stability and enable/disable feature, the SG-531P offers flexibility in power management and system timing.
5V
8-DIP, 4 Leads (Half Size) with through-hole mounting.
-20°C to +70°C
It is marked as RoHS3 Compliant, but this is unverified.
14.7456 MHz
CMOS and TTL
±100ppm
