SG-210STF 26.0000ML3

The Epson SG-210STF 26.0000ML3 is a surface-mount crystal oscillator (XO) that generates a stable 26 MHz clock signal with CMOS output. This oscillator operates from a supply voltage range of 1.6V to 3.6V, making it suitable for low-power and battery-operated applications. It features a frequency stability of ±50ppm across the full operating temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.

The oscillator includes a standby (power down) function that reduces current consumption to a minimum when the output is not required. The maximum supply current is 2.2mA during normal operation, contributing to overall system power efficiency.

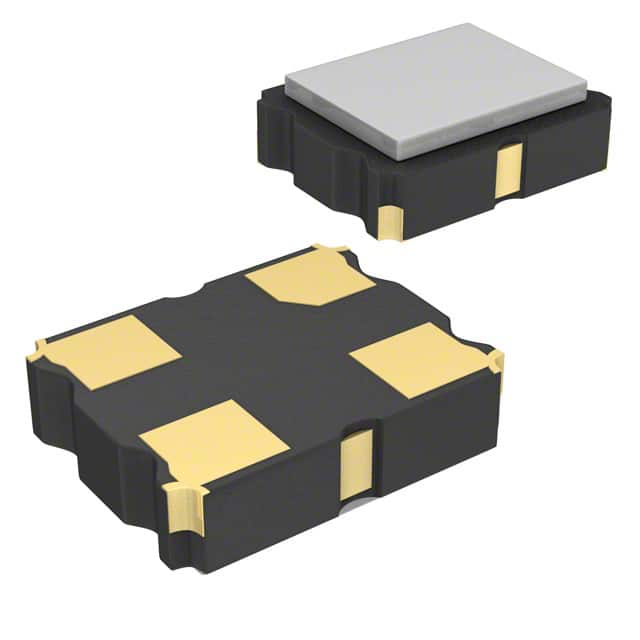

The device is housed in a compact 4-SMD, No Lead package measuring 2.50mm x 2.00mm with a seated height of 0.90mm. This small footprint makes it ideal for space-constrained designs such as portable electronics, IoT devices, and wireless modules. The surface-mount package is compatible with standard reflow soldering processes.

With its CMOS output, the oscillator can directly interface with a wide range of digital logic families. The standby function allows for power management in systems that require intermittent operation. This oscillator is a general-purpose timing solution for applications requiring a precise 26 MHz reference clock.
