| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

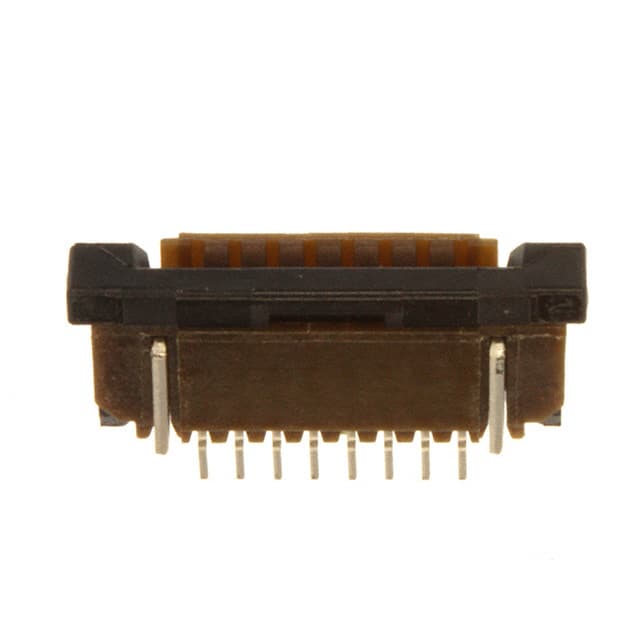

The SFW8R-2STE1LF is an 8-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch and a right-angle surface mount design. It supports both FFC and FPC cable types with a thickness of 0.30mm and accepts straight or tapered cable ends. The connector uses a Zero Insertion Force (ZIF) mechanism for easy cable insertion and secure retention.
The housing and actuator are molded from glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin finish, located on the top side of the connector. The component has a height above board of 2.70mm and is rated for 100V operation over a temperature range of -55°C to 105°C. Termination is via kinked pins for reliable solder joints.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.40 | $0.40 |
| 25+ | $0.36 | $0.36 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.27 | $0.27 |
| 4,000+ | $0.26 | $0.26 |
| 8,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.00mm.
100V.
Surface mount, right angle.
-55°C to 105°C.
Yes, it features Zero Insertion Force (ZIF).
2.70mm.
