| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,514 pcs
|
5514 pcs | On Request | 1 | On Request | On Request | 749 | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

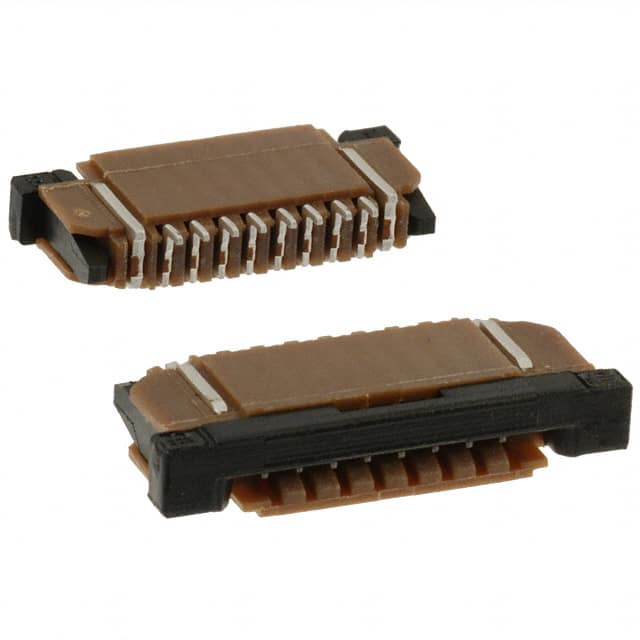

This is an 8-position FFC/FPC connector from Amphenol ICC, part of the SFW series. It features a 1.00mm pitch with bottom contact style. The connector is surface mount right angle, suitable for space-constrained designs. It uses a Zero Insertion Force (ZIF) mechanism for easy cable insertion and removal. The housing is made of glass-filled PPS with UL94 V-0 flammability rating. Contacts are phosphor bronze with tin finish. Operating temperature range -55°C to 105°C. Voltage rating 100V. The connector accepts FFC/FPC cables with thickness 0.30mm, straight or tapered ends. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.26 | $0.26 |
| 2,500+ | $0.25 | $0.25 |
| 4,000+ | $0.23 | $0.23 |
| 8,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.00mm.
100V.
Surface Mount, Right Angle.
-55°C to 105°C.
Tin.
Yes, Zero Insertion Force (ZIF).
