| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,356 pcs
|
2356 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

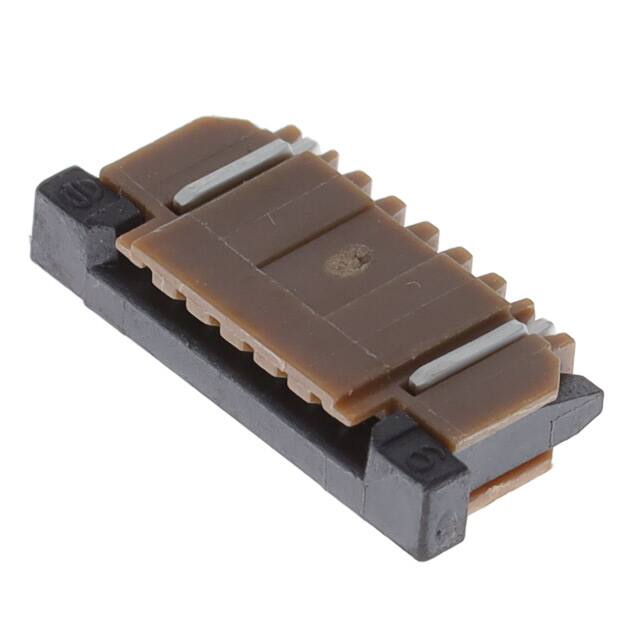

This Amphenol ICC SFW6R-2STE9LF is a high-quality FFC/FPC connector assembly designed for reliable connections in electronic devices. It features 6 positions with a pitch of 1.00mm, suitable for compact designs. The connector is rated for 100V and has a current rating of 1A, making it versatile for various applications.
The connector utilizes a surface mount, right-angle mounting type for efficient PCB integration. It incorporates a slide lock feature for secure mating and offers Zero Insertion Force (ZIF) and solder retention for ease of use and durability. The housing is constructed from Polyphenylene Sulfide (PPS) with glass filling, providing excellent mechanical and thermal properties, and is rated UL94 V-0 for flammability resistance. The operating temperature range is -55°C to 105°C.
Key specifications include a contact material of Phosphor Bronze with a Tin finish, and an FFC/FCB thickness compatibility of 0.30mm to 0.33mm. The height above the board is 0.106 inches (2.70mm). This connector is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1.00mm.
1A.
100V.
Surface mount, right angle.
-55°C to +105°C.
Yes, slide lock with zero insertion force (ZIF).
