| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

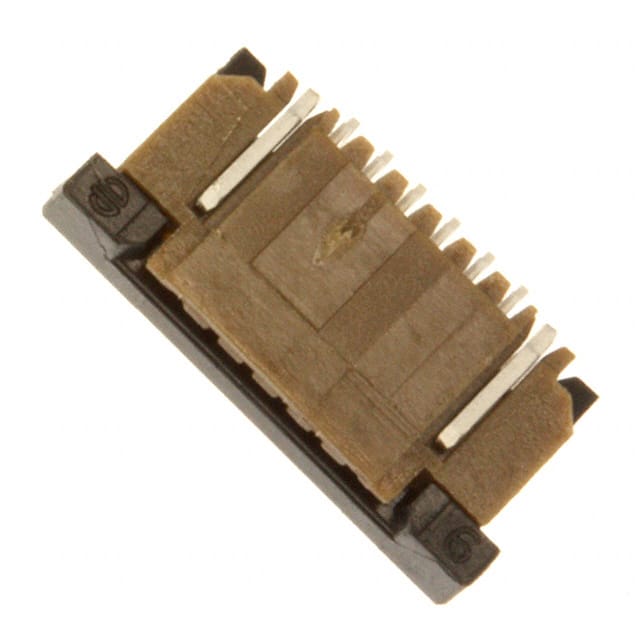

The SFW6R-2STE1LF is a 6-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch. It supports both FFC and FPC cables with thicknesses of 0.30mm or 0.33mm. The connector uses a zero insertion force (ZIF) slide lock mechanism for easy cable insertion and secure retention. Contacts are tin-plated phosphor bronze, and the housing is glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C, and the voltage rating is 100V. The connector is surface mount right angle, with a height above board of 2.70mm. Solder retention features aid in reliable PCB mounting. This connector is suitable for flexible circuit interconnections in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.34 | $0.34 |
| 25+ | $0.31 | $0.31 |
| 100+ | $0.29 | $0.29 |
| 250+ | $0.27 | $0.27 |
| 1,000+ | $0.25 | $0.25 |
| 2,500+ | $0.23 | $0.23 |
| 4,000+ | $0.23 | $0.23 |
| 8,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1.00mm.
100V.
Surface mount, right angle.
-55°C to 105°C.
Yes, it has a slide lock.
Yes, it features ZIF with a slide lock.
