| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

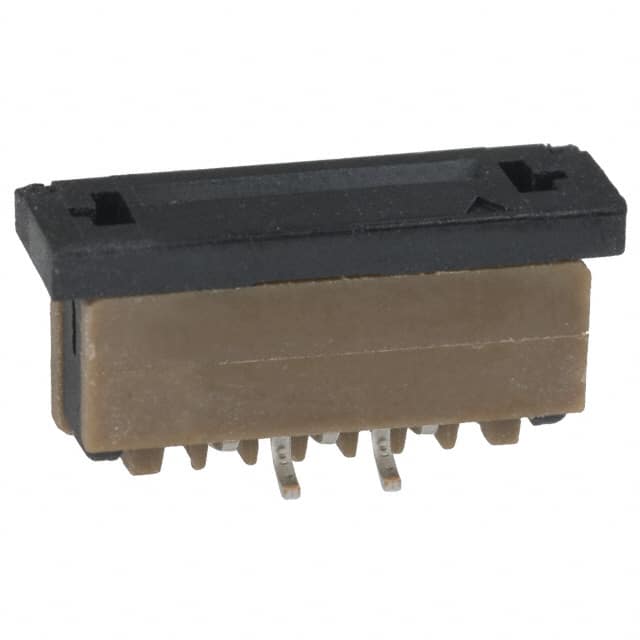

The SFW5S-2STE1LF is a 5-position FFC/FPC connector from Amphenol ICC with a 1.00mm pitch. It features a vertical surface mount design with zero insertion force (ZIF) actuation, allowing easy cable insertion and removal. The connector accepts FFC/FPC cables with a thickness of 0.33mm.
The contacts are made of phosphor bronze with a tin finish, ensuring reliable electrical connections. The housing and actuator are constructed from glass-filled thermoplastic, rated UL94 V-0 for flammability. The operating temperature range is -55°C to 105°C, and the voltage rating is 100V.
This connector is suitable for applications requiring compact, high-density interconnections in consumer electronics, industrial controls, and other signal or data transmission systems. The ZIF mechanism reduces wear on the flexible cable and simplifies assembly in automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
| 10+ | $0.26 | $0.26 |
| 25+ | $0.23 | $0.23 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.20 | $0.20 |
| 1,000+ | $0.18 | $0.18 |
| 2,000+ | $0.18 | $0.18 |
| 4,000+ | $0.16 | $0.16 |
| 10,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
1.00mm.
100V.
Surface mount.
-55°C to 105°C.
Yes, zero insertion force (ZIF).
UL94 V-0.
