| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
87 pcs
|
87 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

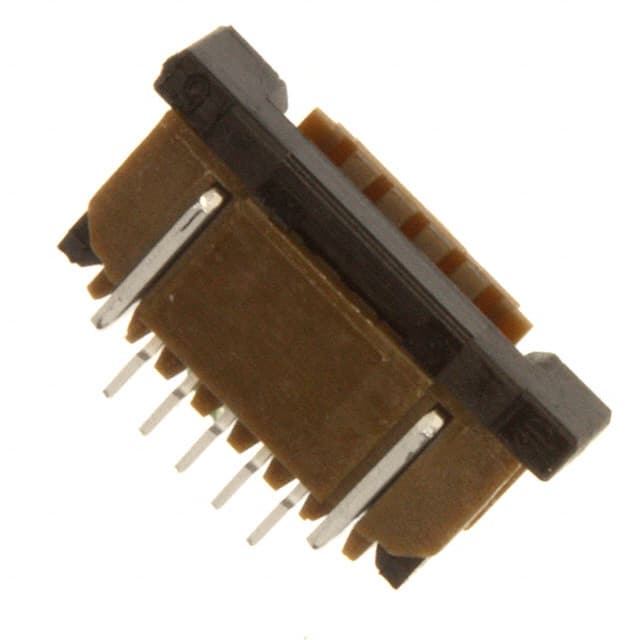

The SFW5R-2STE1LF is a 5-position, 1mm pitch FFC/FPC connector designed for surface mount right-angle installation. It supports both FFC and FPC cable types with a straight or tapered cable end, accommodating a cable thickness of 0.30mm. The connector uses a Zero Insertion Force (ZIF) mechanism for easy cable insertion and secure retention.
The contacts are made of phosphor bronze with a tin finish. The housing and actuator are constructed from glass-filled polyphenylene sulfide (PPS) material with a UL94 V-0 flammability rating. The connector is rated for 100V and operates over a temperature range of -55°C to 105°C. Termination is via kinked pins for reliable solder connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.25 | $0.25 |
| 4,000+ | $0.24 | $0.24 |
| 8,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
1.00mm (0.039 inches).
100V.
Surface mount, right angle.
-55°C to 105°C.
Yes, it features Zero Insertion Force (ZIF).
Phosphor bronze contacts with tin plating.
