| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

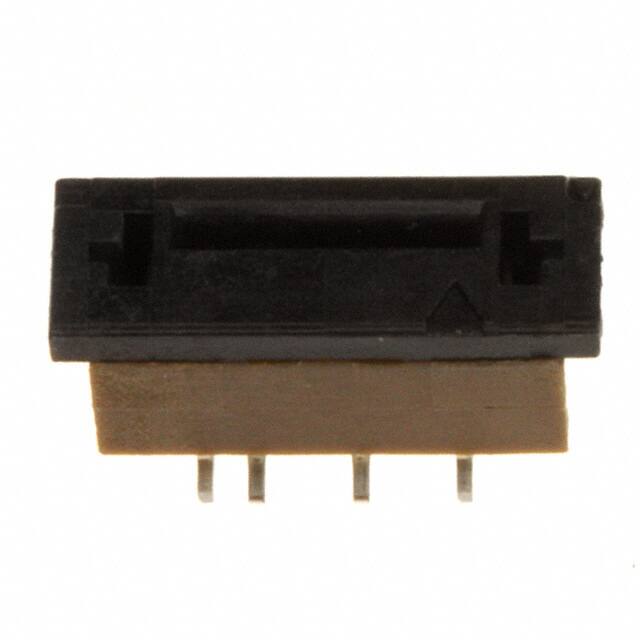

The SFW4S-2STME1LF is an FFC/FPC connector from Amphenol ICC featuring 4 positions at a 1.00mm pitch. It employs a Zero Insertion Force (ZIF) actuator for easy cable insertion and retention. The connector is designed for surface mount soldering, with tin-plated phosphor bronze contacts and a glass-filled thermoplastic housing rated UL94 V-0.
Electrically, it supports a voltage rating of 100V and operates across a temperature range of -55°C to 105°C. The housing height above board is 5.30mm, and the contact orientation is vertical, single-sided. These specifications make it suitable for automated assembly in compact electronic designs.
Materials include a glass-filled thermoplastic housing and actuator, and phosphor bronze contacts with a tin finish. The connector is compatible with both FFC and FPC cables of 0.33mm thickness. The ZIF mechanism reduces insertion forces, extending the lifespan of both the connector and the flexible circuit.
This component is intended for use in tight spaces requiring reliable interconnects between flexible circuits and printed circuit boards. Its SMD footprint and vertical orientation optimize board space utilization.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.39 | $0.39 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.33 | $0.33 |
| 1,000+ | $0.30 | $0.30 |
| 2,000+ | $0.29 | $0.29 |
| 4,000+ | $0.28 | $0.28 |
| 10,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.00mm (0.039 inches).
100V.
Surface Mount.
-55°C to 105°C.
Yes, it features a Zero Insertion Force (ZIF) locking mechanism.
Phosphor bronze contacts with tin finish; glass-filled thermoplastic housing and actuator, rated UL94 V-0.
