| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69,000 pcs
|
69000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

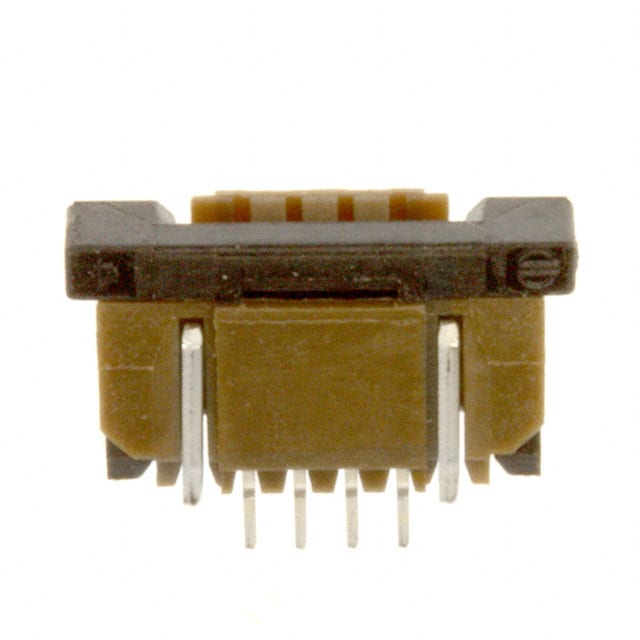

The SFW4R-2STE1LF is a 4-position FFC/FPC connector from Amphenol ICC with a 1.00mm pitch. It features a surface mount, right angle mounting style and a top contact configuration. The connector uses a zero insertion force (ZIF) mechanism for secure cable retention.
The contacts are made of phosphor bronze with a tin finish, ensuring reliable electrical performance. The housing and actuator are constructed from glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. The connector is rated for 100V and operates over -55°C to 105°C.
It accommodates FFC/FPC cables with a thickness of 0.30mm, with straight or tapered ends. The height above board is 2.70mm, suitable for compact designs. This connector is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.33 | $0.33 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 2,500+ | $0.21 | $0.21 |
| 4,000+ | $0.18 | $0.18 |
| 8,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.00mm.
Surface mount, right angle.
100V.
-55°C to 105°C.
Polyphenylene sulfide (PPS), glass filled.
Yes, it features a zero insertion force (ZIF) design.
