| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

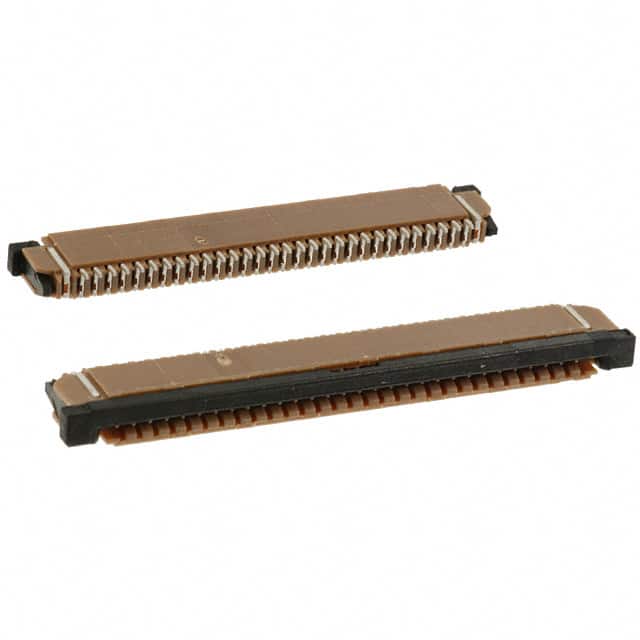

The Amphenol ICC SFW30R-1STE1LF is a 30-position FFC/FPC connector with a 1.00mm pitch, designed for right-angle surface mount assembly. It features a Zero Insertion Force (ZIF) mechanism for easy cable insertion and secure retention. The connector accepts FFC or FPC cables with a thickness of 0.30mm, and supports both straight and tapered cable end types.
Contacts are made of phosphor bronze with a tin finish, located on the bottom of the connector. The housing and actuator are constructed from glass-filled Polyphenylene Sulfide (PPS), rated UL94 V-0 for flammability. The connector is rated for 100V and operates over a temperature range of -55°C to 105°C.
This connector is suitable for applications requiring a compact, reliable interconnection for flat flexible cables. The right-angle orientation and low 2.70mm height above board make it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.07 | $1.07 |
| 10+ | $0.91 | $0.91 |
| 25+ | $0.81 | $0.81 |
| 100+ | $0.77 | $0.77 |
| 250+ | $0.71 | $0.71 |
| 500+ | $0.66 | $0.66 |
| 1,000+ | $0.62 | $0.62 |
| 2,000+ | $0.56 | $0.56 |
| 4,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
1.00mm.
100V.
Surface mount, right angle.
-55°C to 105°C.
Tin.
Glass-filled Polyphenylene Sulfide (PPS) with UL94 V-0 rating.
