| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

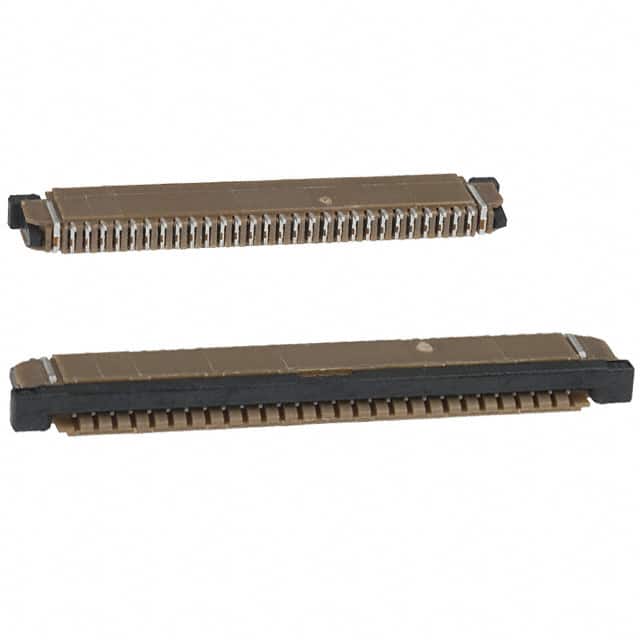

The SFW28R-1STE1LF is a 28-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch and surface mount right angle mounting. It accepts FFC/FPC cables with a thickness of 0.30mm or 0.33mm and supports both straight and tapered cable end types. The connector uses a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable retention. Contacts are bottom-side tin-plated phosphor bronze, and the housing and actuator are made of glass-filled Polyphenylene Sulfide (PPS) rated UL94 V-0. Rated for 100V and an operating temperature range of -55°C to 105°C, this connector is suitable for a variety of compact electronic interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.77 | $0.77 |
| 25+ | $0.67 | $0.67 |
| 100+ | $0.65 | $0.65 |
| 250+ | $0.62 | $0.62 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.55 | $0.55 |
| 2,000+ | $0.54 | $0.54 |
| 4,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions.
1.00mm (0.039 inches).
Surface mount, right angle.
100V.
Yes, a slide lock.
0.30mm and 0.33mm.
-55°C to 105°C.
