| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

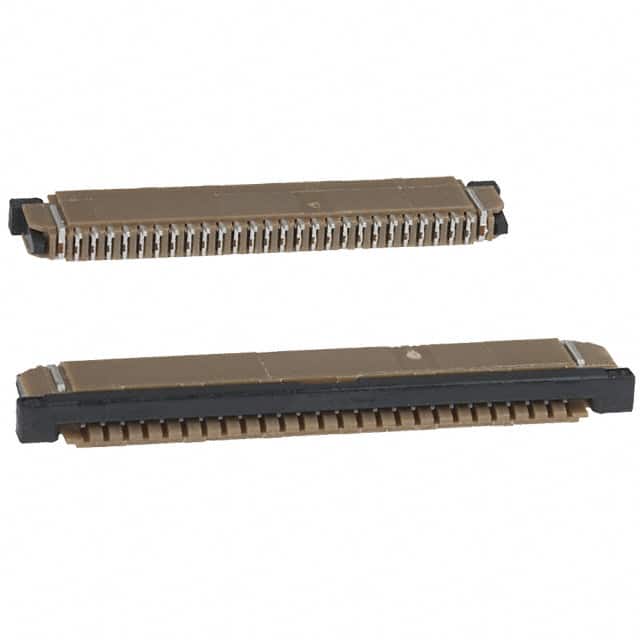

The SFW26R-1STE1LF is a 26-position FFC/FPC connector from Amphenol ICC's SFW series. It features a 1.00mm pitch and bottom contact configuration, designed for surface mount right angle mounting. The connector includes Zero Insertion Force (ZIF) and solder retention features, ensuring reliable mating and secure board attachment. Contacts are made of phosphor bronze with tin finish. The housing and actuator are molded from glass-filled Polyphenylene Sulfide (PPS), rated UL94 V-0. Operating temperature range is -55°C to 105°C. This connector accepts 0.30mm thick FFC or FPC cables with straight ends.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.76 | $0.76 |
| 10+ | $0.70 | $0.70 |
| 25+ | $0.64 | $0.64 |
| 100+ | $0.62 | $0.62 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.59 | $0.59 |
| 1,000+ | $0.58 | $0.58 |
| 2,000+ | $0.55 | $0.55 |
| 4,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 26 positions.
The pitch is 1.00mm.
The voltage rating is 100V.
Surface mount, right angle.
Yes, Zero Insertion Force (ZIF) is a feature.
-55°C to 105°C.
The connector accepts 0.30mm thick cables.
