| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

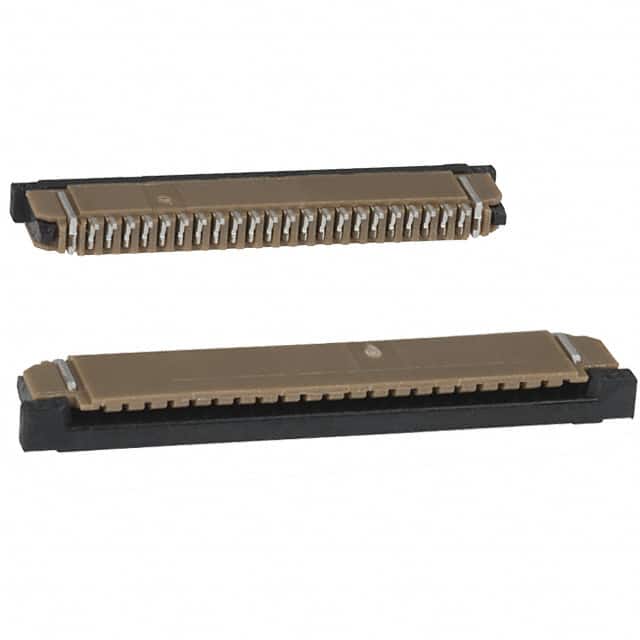

The Amphenol ICC SFW22R-2STE1LF is a 22-position FFC/FPC connector designed for reliable flat flexible cable interconnections. It features a 1.00mm pitch and a right-angle surface mount mounting style, making it suitable for compact PCB layouts where space is at a premium.
The connector uses a Zero Insertion Force (ZIF) mechanism, which simplifies cable insertion and removal while reducing wear on the contacts and cable pads. It accepts FFC and FPC cables with a thickness of 0.30mm and supports both straight and tapered cable end types.
Constructed with a phosphor bronze contact material and tin contact finish, the connector is rated for 100V operation. The housing and actuator are made from glass-filled Polyphenylene Sulfide (PPS), providing a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.71 | $0.71 |
| 100+ | $0.68 | $0.68 |
| 250+ | $0.64 | $0.64 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.57 | $0.57 |
| 2,000+ | $0.54 | $0.54 |
| 4,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
This connector has 22 positions.
The mounting type is Surface Mount, Right Angle.
The voltage rating is 100V.
Yes, it features Zero Insertion Force (ZIF).
The operating temperature range is -55°C to 105°C.
The housing is made of glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating.
