| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

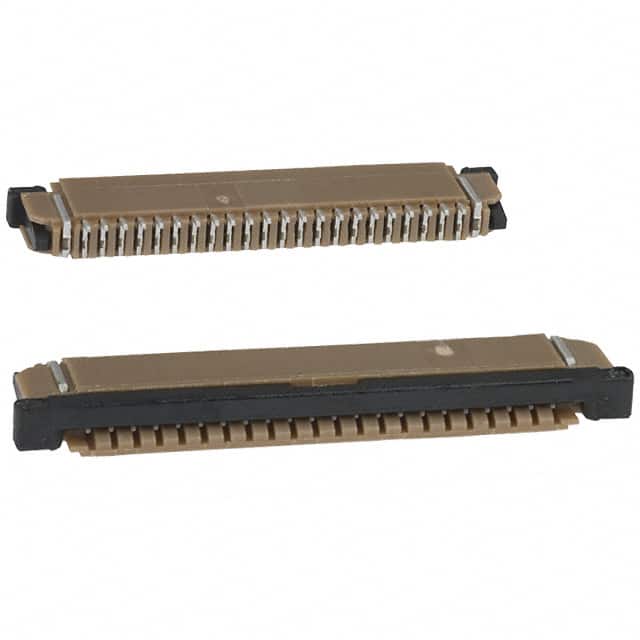

The SFW22R-1STE1LF is a 22-position FFC/FPC connector from Amphenol ICC's SFW-R series, featuring a 1.00mm pitch and bottom contact design. It supports both FFC and FPC cable types with straight or tapered ends, and accepts a cable thickness of 0.30mm.
The connector is surface mounted with a right-angle orientation and uses kinked pin termination. The housing and actuator are molded from glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with tin plating.
This ZIF (Zero Insertion Force) connector is rated for a maximum voltage of 100V and operates over a temperature range of -55°C to 105°C. The height above board is 2.70mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.74 | $0.74 |
| 25+ | $0.67 | $0.67 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.54 | $0.54 |
| 2,000+ | $0.51 | $0.51 |
| 4,000+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions.
1.00mm.
100V maximum.
Surface mount, right angle.
-55°C to 105°C.
FFC and FPC cables with straight or tapered ends, 0.30mm thickness.
Yes, it features Zero Insertion Force (ZIF).
