| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

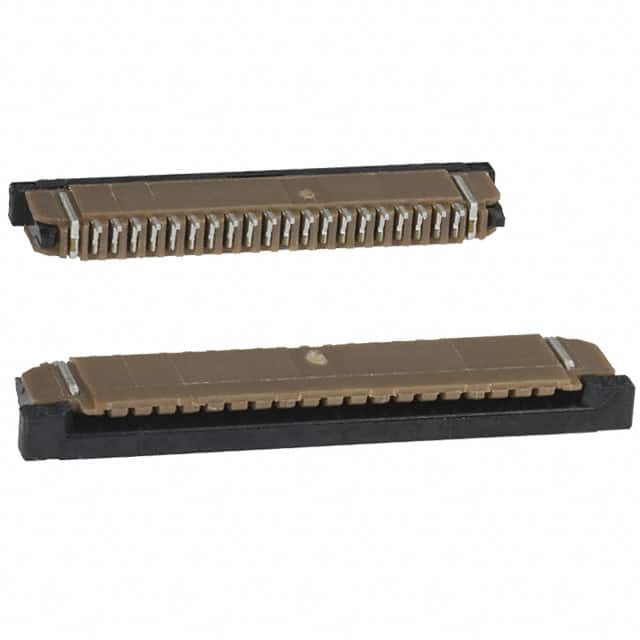

The SFW20R-2STE1LF is a 20-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch and top contact design. It incorporates a Zero Insertion Force (ZIF) actuator with a slide lock mechanism for secure cable retention. The connector is housed in glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating, and contacts are phosphor bronze with tin finish.
Electrical rating is 100V, with an operating temperature range of -55°C to 105°C. The connector supports FFC/FPC cable thicknesses of 0.30mm and 0.33mm. Mounting is surface mount, right angle, with a height above board of 2.70mm. The actuator and housing materials are both PPS glass-filled, providing robust mechanical and thermal performance.
This connector is suitable for compact electronic assemblies requiring reliable, low-profile interconnection. The ZIF design simplifies assembly and reduces wear on flexible cables. The slide lock ensures the cable remains securely engaged during operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.60 | $0.60 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.51 | $0.51 |
| 1,000+ | $0.46 | $0.46 |
| 2,500+ | $0.42 | $0.42 |
| 4,000+ | $0.42 | $0.42 |
| 8,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
1.00mm
100V
Surface mount, right angle.
Yes, Zero Insertion Force (ZIF) with slide lock.
-55°C to 105°C.
0.30mm and 0.33mm.
