| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

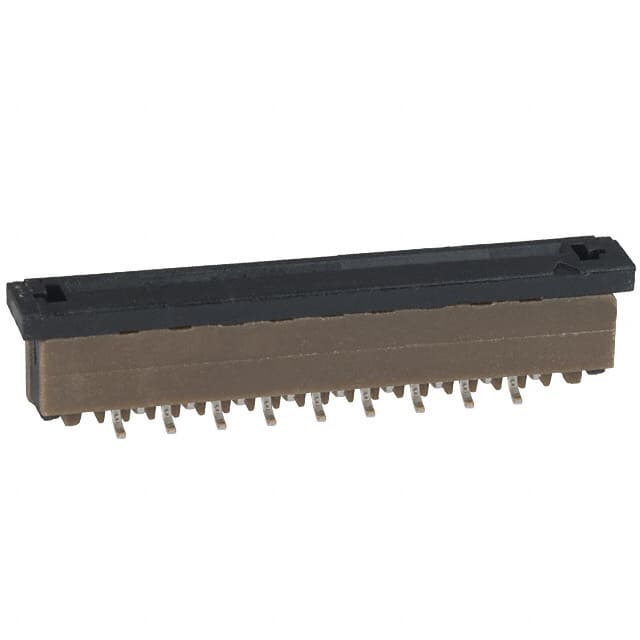

The SFW18S-2STE1LF is an 18-position, 1.00mm pitch FFC/FPC connector from Amphenol ICC. It features a vertical, one-sided contact configuration with a zero insertion force (ZIF) actuator for easy cable insertion and reliable retention. The connector is surface mount with kinked pin termination, making it suitable for automated assembly processes.
Key specifications include a voltage rating of 100V, an operating temperature range of -55°C to 105°C, and a material flammability rating of UL94 V-0. The housing and actuator are made of glass-filled thermoplastic, and the contacts are tin-plated phosphor bronze. The connector accepts FFC/FPC cables with a thickness of 0.30mm and supports both straight and tapered cable end types.
This connector is designed for applications requiring a compact, low-profile interconnect solution. The 5.30mm height above board allows for space-constrained designs. The ZIF mechanism reduces insertion force and minimizes wear on the flexible cable.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.60 | $0.60 |
| 10+ | $0.51 | $0.51 |
| 25+ | $0.46 | $0.46 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.39 | $0.39 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.30 | $0.30 |
| 4,000+ | $0.29 | $0.29 |
| 10,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions.
1.00mm.
100V.
Surface mount.
-55°C to 105°C.
Yes, it features Zero Insertion Force (ZIF).
5.30mm.
