| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,932 pcs
|
42932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

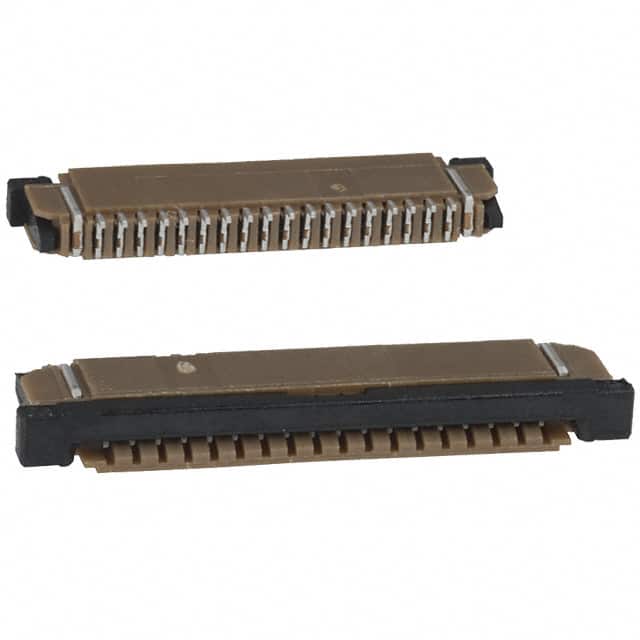

The SFW18R-1STE1LF is a 18-position FFC/FPC connector from Amphenol ICC, designed for surface mount, right-angle mounting. It features a 1.00mm pitch and bottom contact configuration, making it suitable for space-constrained applications. The connector supports both FFC and FPC cables with thicknesses of 0.30mm and 0.33mm, and accepts straight or tapered cable ends. The housing is made of glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating, ensuring durability and safety. The contacts are tin-plated phosphor bronze, with solder termination and solder retention for reliable board attachment. The slide lock mechanism provides secure cable retention, and the Zero Insertion Force (ZIF) design simplifies insertion and reduces wear. The operating temperature range is -55°C to 105°C, and the voltage rating is 100V. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.59 | $0.59 |
| 100+ | $0.57 | $0.57 |
| 250+ | $0.51 | $0.51 |
| 1,000+ | $0.46 | $0.46 |
| 2,500+ | $0.43 | $0.43 |
| 4,000+ | $0.41 | $0.41 |
| 8,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 18 positions.
The pitch is 1.00mm.
Surface mount, right angle.
100V.
-55°C to 105°C.
Yes, it has a slide lock.
Yes, it features Zero Insertion Force (ZIF).
