| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

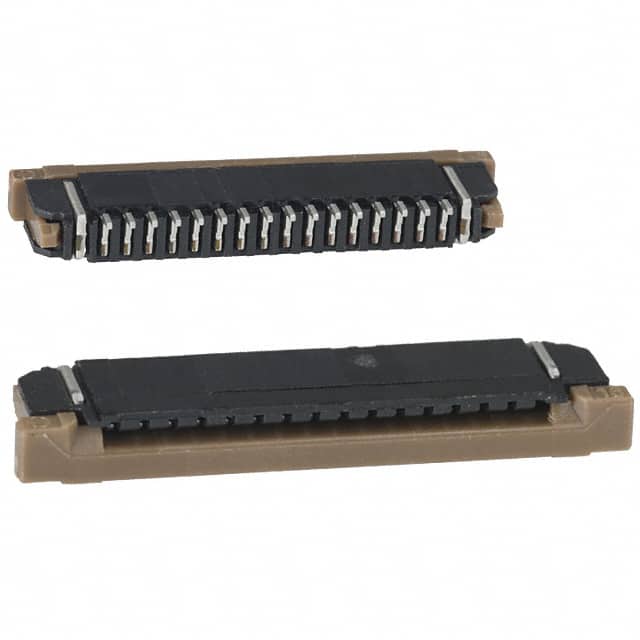

The SFW16R-4STE1LF is a 16-position FFC/FPC connector from Amphenol ICC with a 1.00mm pitch. It features a surface mount, right angle design with top contact configuration. The connector utilizes a zero insertion force (ZIF) mechanism with a slide lock for secure cable retention. Contacts are made of phosphor bronze with a tin finish, and the housing and actuator are constructed from glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating.
This connector is rated for 100V and operates over a temperature range of -55°C to 105°C. It supports FFC/FPC cables with thicknesses of 0.30mm and 0.33mm. Solder retention features aid in reliable mounting during reflow soldering. The cable end type is notched and tapered.
The SFW16R-4STE1LF is suitable for applications requiring compact, reliable interconnections in consumer electronics, automotive modules, and display assemblies. Its right-angle orientation and low profile (2.70mm height above board) make it ideal for space-constrained PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.65 | $0.65 |
| 25+ | $0.58 | $0.58 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.49 | $0.49 |
| 1,000+ | $0.36 | $0.36 |
| 2,500+ | $0.34 | $0.34 |
| 4,000+ | $0.32 | $0.32 |
| 8,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
1.00mm.
100V.
Surface mount, right angle.
-55°C to 105°C.
Tin.
Slide lock.
