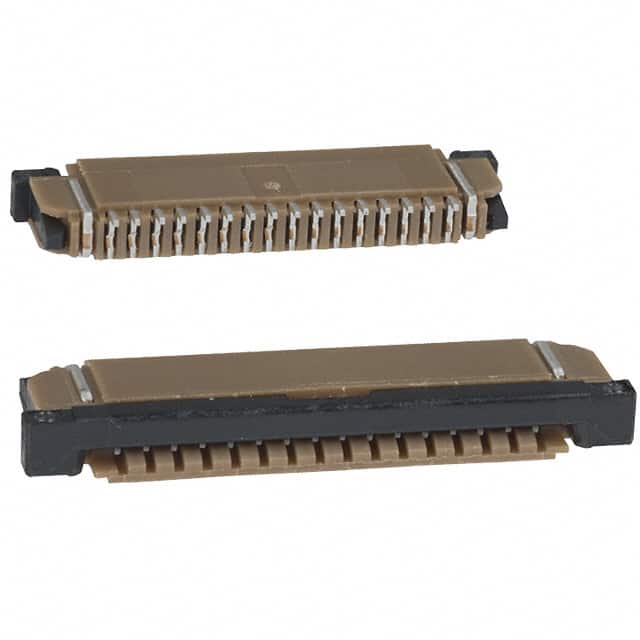

The Amphenol ICC SFW16R-1STE1LF is a 16-position, 1.00mm pitch FFC/FPC connector designed for right angle surface mount applications. It features a bottom contact configuration and a zero insertion force (ZIF) actuator, enabling easy and reliable cable insertion without damaging the flexible circuit. The connector accepts 0.30mm thick FFC or FPC cables with a straight end type.
Constructed with a phosphor bronze contact material finished in tin, and a glass-filled polyphenylene sulfide (PPS) housing and actuator, the SFW16R-1STE1LF offers robust mechanical performance. It includes solder retention features for secure board attachment during reflow. The operating temperature range is -55°C to 105°C, and the voltage rating is 100V.
This connector is suitable for compact electronic assemblies where space is limited, providing a reliable interconnection for flat flexible cables. The housing material is rated UL94 V-0 for flammability. The height above board is 2.70mm, making it appropriate for low-profile designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.49 | $0.49 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.42 | $0.42 |
| 1,000+ | $0.37 | $0.37 |
| 2,500+ | $0.34 | $0.34 |
| 4,000+ | $0.33 | $0.33 |
| 8,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 16 positions.
The pitch is 1.00mm (0.039 inches).
The voltage rating is 100V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 105°C.
It features a zero insertion force (ZIF) actuator.
The height above board is 2.70mm (0.106 inches).
