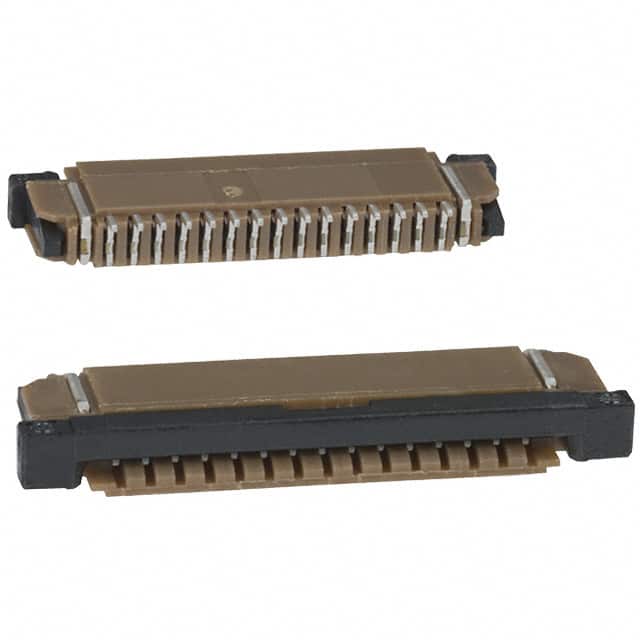

SFW15R-1STE1 The Amphenol ICC SFW15R-1STE1 is a 15-position FFC/FPC connector assembly. It features a 1.00mm pitch and a surface mount, right angle configuration.
Mfr Part #:

SFW15R-1STE1

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
The Amphenol ICC SFW15R-1STE1 is a 15-position FFC/FPC connector assembly. It features a 1.00mm pitch and a surface mount, right angle configuration.
✓ Total Stock: 1,171 pcs
$ Price Range: $1.00

SFW15R-1STE1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,171 pcs
On Request
1171 pcs On Request 1 On Request On Request 04+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SFW15R-1STE1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Pitch
Termination
View Similar Products (0)

SFW15R-1STE1 Description

Short technical summary and product information.

This FFC/FPC connector assembly from Amphenol ICC, part number SFW15R-1STE1, offers 15 positions with a 1.00mm pitch. It is designed for surface mount, right angle applications.



The connector features a bottom contact configuration and a slide lock mechanism for secure cable retention. The housing and actuator materials are made of glass-filled Polyphenylene Sulfide (PPS), rated UL94 V-0 for material flammability. The contact material is Phosphor Bronze with a Tin Alloy finish.



Key specifications include a height above board of 0.106" (2.70mm) and support for FFC/FPC thickness of 0.30mm and 0.33mm. The Zero Insertion Force (ZIF) feature simplifies cable insertion and removal.



This assembly is suitable for various electronic applications requiring reliable flat flexible cable connections. Its right-angle mounting and compact design make it ideal for space-constrained environments.

SFW15R-1STE1 Quick Information

Product Type: FFC/FPC Connector Assembly
Series: SFW-R
Canonical Name: Amphenol ICC SFW15R-1STE1 FFC/FPC Connector Assembly
Subcategory: FFC/FPC Connector Assembly

SFW15R-1STE1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SFW15R-1STE1 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SFW15R-1STE1 Features

  • 15 positions for FFC/FPC connections.
  • 1.00mm pitch for compact designs.
  • Surface mount, right angle configuration.
  • Zero Insertion Force (ZIF) mechanism.
  • Slide lock for secure cable retention.

SFW15R-1STE1 Applications

  • Ideal for compact electronic devices.
  • Suitable for space-constrained applications.
  • Used in consumer electronics.
  • Reliable for flexible cable connections.

SFW15R-1STE1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SFW15R-1STE1 connector have?

The SFW15R-1STE1 connector has 15 positions.

What is the pitch of the SFW15R-1STE1 connector?

The pitch of the SFW15R-1STE1 connector is 1.00mm (0.039").

What type of mounting does the SFW15R-1STE1 support?

The SFW15R-1STE1 supports surface mount, right angle mounting.

What is the contact configuration for the SFW15R-1STE1?

The SFW15R-1STE1 has bottom contacts.

What is the termination style for the SFW15R-1STE1?

The termination style for the SFW15R-1STE1 is solder.

What is the height above the board for this connector?

The height above the board for the SFW15R-1STE1 is 0.106" (2.70mm).

Does the SFW15R-1STE1 have a locking feature?

Yes, the SFW15R-1STE1 features a slide lock.
