| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

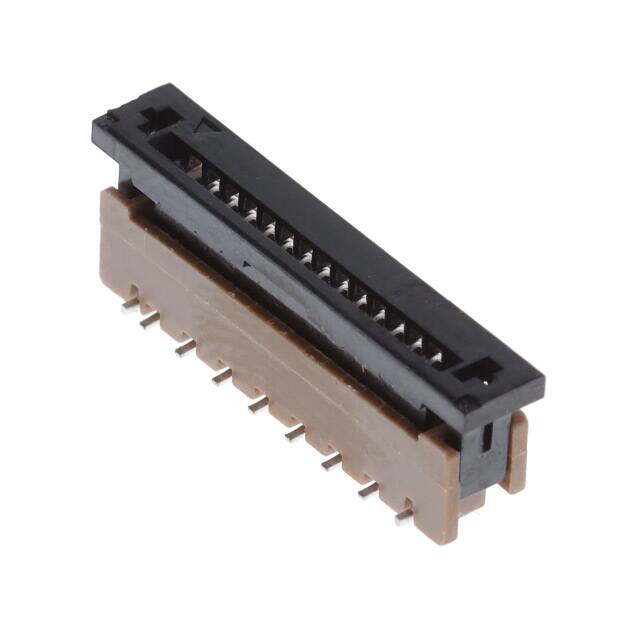

The Amphenol ICC SFW14S-2STME1LF is a 14-position FFC/FPC connector designed for reliable flat flexible cable interconnections. It features a 1.00mm pitch and a vertical, 1-sided contact configuration, making it suitable for space-constrained applications where a low-profile connection is required.
This connector utilizes a Zero Insertion Force (ZIF) mechanism, which simplifies cable insertion and reduces wear on the contacts. It is surface mount (SMD) terminated with solder, and the housing and actuator are constructed from glass-filled thermoplastic with a UL94 V-0 flammability rating. The contacts are made of phosphor bronze with a tin finish.
With a voltage rating of 100V and an operating temperature range of -55°C to 105°C, this connector is suitable for a variety of consumer and industrial electronic devices. The 0.33mm FFC/FPC thickness compatibility ensures it works with standard flexible cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.54 | $0.54 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.46 | $0.46 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.41 | $0.41 |
| 4,000+ | $0.37 | $0.37 |
| 10,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 14 positions.
The pitch is 1.00mm.
It is a surface mount (SMD) connector.
The voltage rating is 100V.
Yes, it features a Zero Insertion Force (ZIF) design.
The operating temperature range is -55°C to 105°C.
The height above board is 0.209 inches (5.30mm).
