| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

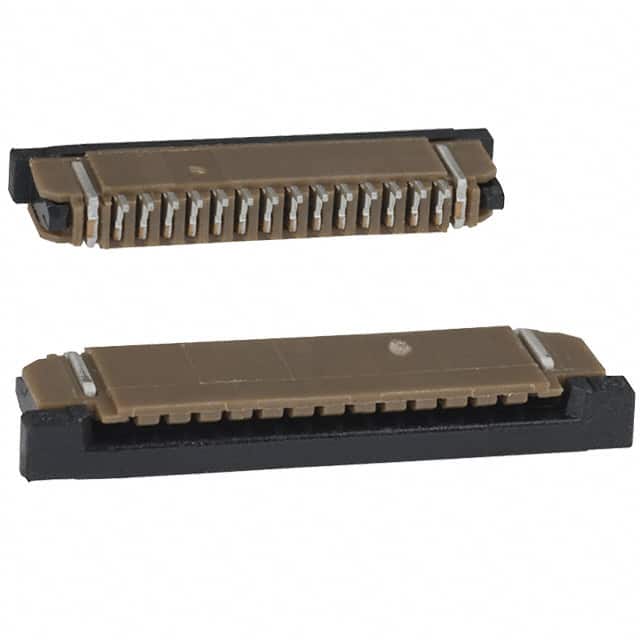

This Amphenol ICC SFW14R-2STE1LF is a 14 position, 1.00mm pitch FFC/FPC connector designed for reliable flat flex cable interconnections. It features a zero insertion force (ZIF) mechanism with a slide lock actuator, enabling easy cable insertion and secure retention without stressing the contacts. The connector supports both FFC and FPC cable types with a thickness range of 0.30mm to 0.33mm and straight or tapered cable ends. Contacts are constructed from phosphor bronze with tin plating, and both the housing and actuator are molded from glass-filled polyphenylene sulfide (PPS) rated UL94 V-0 for flammability. The surface mount, right angle orientation (2.70mm height above board) is ideal for low-profile, space-constrained PCB designs. Electrical rating is 100V with an operating temperature range of -55°C to 105°C. Termination style is kinked pin, facilitating reliable solder joints during reflow.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.49 | $0.49 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.42 | $0.42 |
| 1,000+ | $0.38 | $0.38 |
| 2,500+ | $0.33 | $0.33 |
| 4,000+ | $0.33 | $0.33 |
| 8,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 14 positions.
The pitch is 1.00mm (0.039 inches).
The voltage rating is 100V.
Surface mount, right angle.
-55°C to 105°C.
Slide lock.
Phosphor bronze contact material with tin finish.
