| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

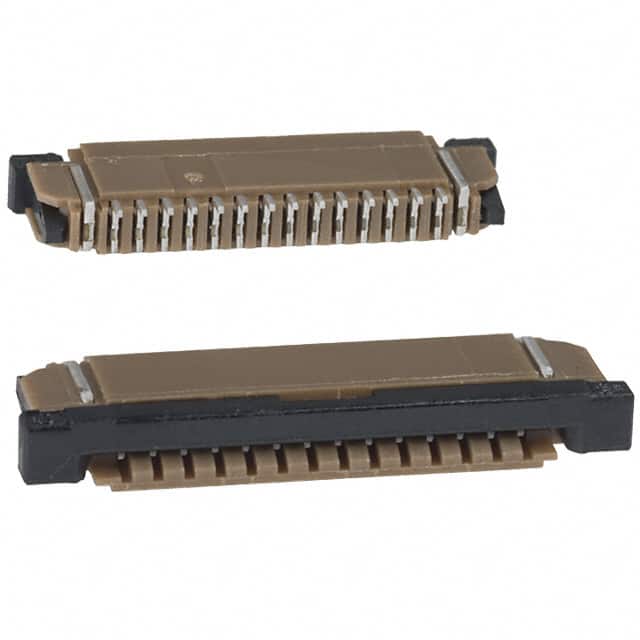

The Amphenol ICC SFW14R-1STE1LF is a 14-position FFC/FPC connector with a 1.00mm pitch, designed for surface mount right-angle mounting. It features a Zero Insertion Force (ZIF) slide lock mechanism for secure cable retention. The connector accepts FFC and FPC cables with a thickness of 0.30mm or 0.33mm, and supports both straight and tapered cable end types.
The housing and actuator are made from glass-filled Polyphenylene Sulfide (PPS), rated UL94 V-0 for flammability. Contacts are phosphor bronze with a tin finish, located on the bottom of the connector. The operating temperature range is -55°C to 105°C, and the voltage rating is 100V. This connector is suitable for applications requiring a reliable, low-profile interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.52 | $0.52 |
| 25+ | $0.46 | $0.46 |
| 100+ | $0.44 | $0.44 |
| 250+ | $0.39 | $0.39 |
| 1,000+ | $0.33 | $0.33 |
| 2,500+ | $0.32 | $0.32 |
| 4,000+ | $0.30 | $0.30 |
| 8,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SFW14R-1STE1LF has 14 positions.
The pitch is 1.00mm.
The voltage rating is 100V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 105°C.
It has a slide lock locking feature.
The height above board is 2.70mm.
