| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

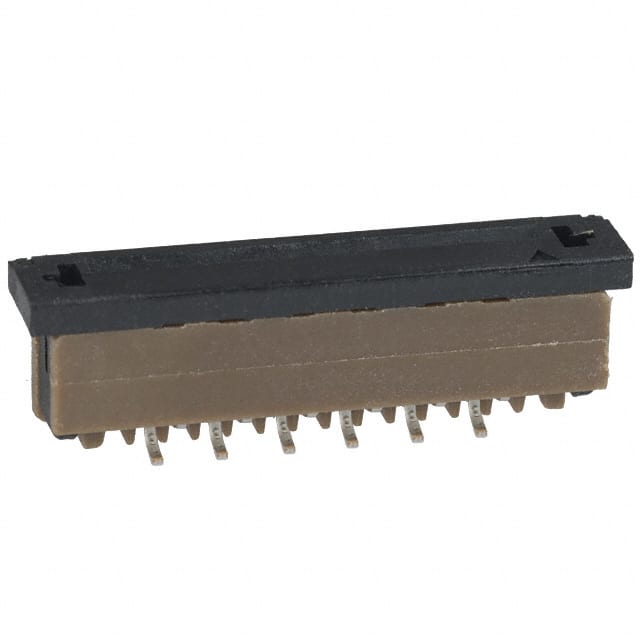

The Amphenol ICC SFW12S-2STE1LF is a surface mount FFC/FPC connector designed for reliable flat flex cable interconnections. It offers 12 positions with a 1.00mm pitch and a vertical, 1-sided contact configuration.
This connector features a Zero Insertion Force (ZIF) mechanism, simplifying cable insertion and removal while reducing wear on the contacts. It is rated for a maximum voltage of 100V and operates over a temperature range of -55°C to 105°C.
The housing and actuator are constructed from glass-filled thermoplastic with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin finish. The connector has a height above board of 5.30mm and accepts FFC/FPC cables with a thickness of 0.33mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.47 | $0.47 |
| 25+ | $0.42 | $0.42 |
| 100+ | $0.40 | $0.40 |
| 250+ | $0.36 | $0.36 |
| 1,000+ | $0.29 | $0.29 |
| 2,000+ | $0.29 | $0.29 |
| 4,000+ | $0.28 | $0.28 |
| 10,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SFW12S-2STE1LF has 12 positions.
The pitch is 1.00mm.
The mounting type is Surface Mount.
The maximum voltage rating is 100V.
The operating temperature range is -55°C to 105°C.
Yes, it features a Zero Insertion Force (ZIF) mechanism.
The height above board is 5.30mm.
