| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

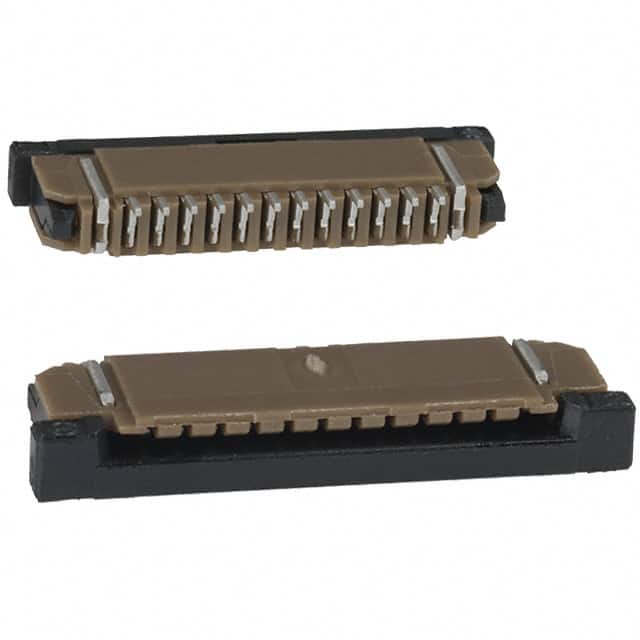

The SFW12R-2STE1LF is a 12-position FFC/FPC connector from Amphenol ICC with a 1.00mm pitch. It features a surface mount, right angle orientation with top contacts. The connector uses a slide lock mechanism and supports zero insertion force (ZIF) for easy cable insertion. Contacts are made of phosphor bronze with tin finish. The housing and actuator are constructed from glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. It operates over a temperature range of -55°C to 105°C and is rated for 100V. Solder retention features ensure reliable board attachment. This connector is suitable for applications requiring compact, reliable interconnections in consumer electronics, automotive, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.49 | $0.49 |
| 25+ | $0.44 | $0.44 |
| 100+ | $0.42 | $0.42 |
| 250+ | $0.37 | $0.37 |
| 1,000+ | $0.34 | $0.34 |
| 2,500+ | $0.32 | $0.32 |
| 4,000+ | $0.31 | $0.31 |
| 8,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
1.00mm.
100V.
Surface mount, right angle.
-55°C to 105°C.
Tin.
Yes, slide lock.
