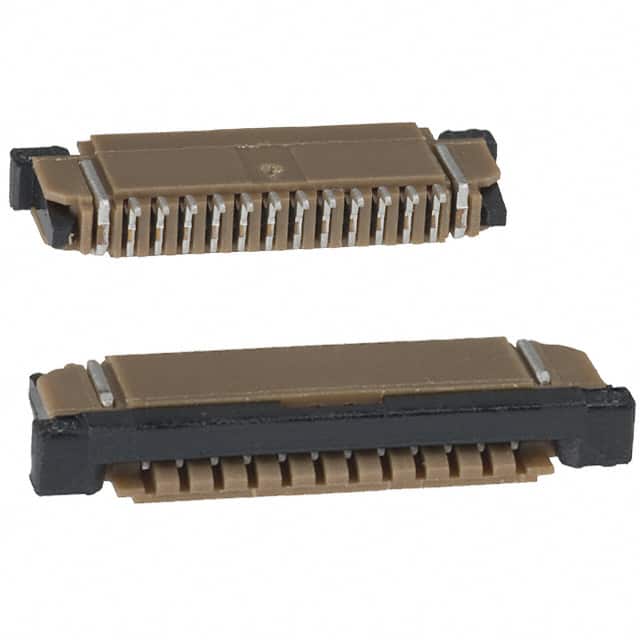

The SFW12R-1STE1LF is a 12-position, 1.00mm pitch FFC/FPC connector from Amphenol ICC. It features a right-angle surface mount design with bottom contacts, allowing cable insertion from the top. The connector incorporates a Zero Insertion Force (ZIF) mechanism for secure and easy cable locking without requiring insertion force.
Electrical specifications include a voltage rating of 100V and an operating temperature range of -55°C to 105°C. Contacts are made of tin-plated phosphor bronze, providing reliable conductivity and corrosion resistance. The housing and actuator are constructed from glass-filled Polyphenylene Sulfide (PPS), offering high mechanical strength and thermal stability. The material flammability rating is UL94 V-0.
The connector accepts FFC/FPC cables with a thickness of 0.30mm. The height above board is 2.70mm (0.106 inches), making it suitable for compact PCB designs. Termination is via solder, and the connector is designed for surface mount assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.45 | $0.45 |
| 25+ | $0.40 | $0.40 |
| 100+ | $0.38 | $0.38 |
| 250+ | $0.34 | $0.34 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.29 | $0.29 |
| 4,000+ | $0.27 | $0.27 |
| 8,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
1.00mm (0.039 inches).
100V.
Surface mount, right angle.
-55°C to 105°C.
Tin.
Polyphenylene Sulfide (PPS), glass filled.
