| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Material | |
| Automotive Grade | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Industrial Grade | |
| Locking Feature | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

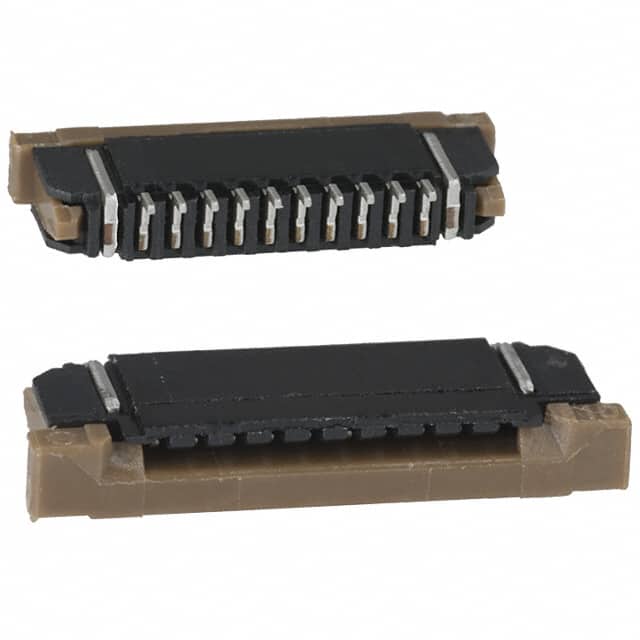

The Amphenol ICC SFW10R-4STE1LF is a 10-position FFC/FPC connector assembly designed for surface mount right angle mounting. It features a pitch of 1.00mm (0.039") and supports both FFC and FPC cable types. The connector includes a slide lock for secure cable retention and zero insertion force (ZIF) actuation, simplifying assembly.
Contact material is phosphor bronze with a tin finish, while the housing and actuator are made from glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. The connector is rated for 100V and operates over -55°C to 105°C. Compatible cable thickness is 0.30mm and 0.33mm, with notched/tapered cable ends. Height above board is 0.106" (2.70mm). Termination is solder, with solder retention features.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.43 | $0.43 |
| 100+ | $0.41 | $0.41 |
| 250+ | $0.37 | $0.37 |
| 1,000+ | $0.33 | $0.33 |
| 2,500+ | $0.32 | $0.32 |
| 4,000+ | $0.31 | $0.31 |
| 8,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.00mm (0.039").
Surface Mount, Right Angle.
100V.
-55°C to 105°C.
Slide Lock.
0.30mm and 0.33mm.
