| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

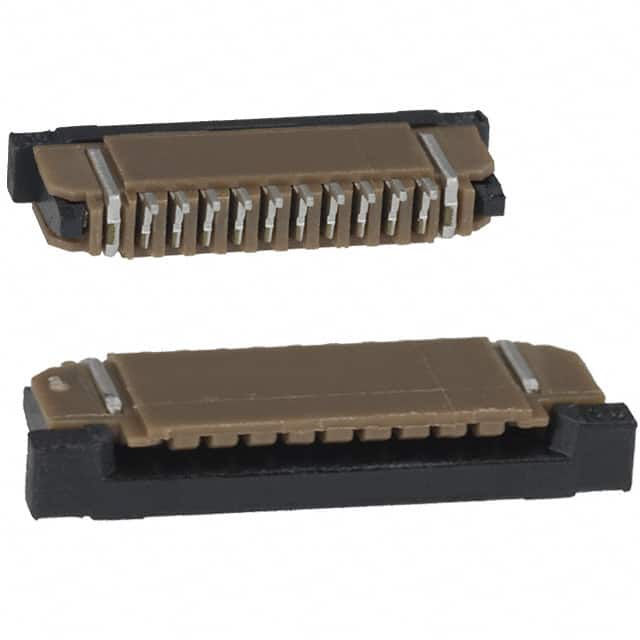

The SFW10R-2STE1LF is a 10-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch and top contact orientation. It supports both FFC and FPC cable types with a tapered cable end and a 0.30mm cable thickness. The connector uses a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable retention.
This connector is rated for a maximum voltage of 100V and operates over a temperature range of -55°C to 105°C. The housing and actuator are made of glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish.
Designed for surface mount, right angle mounting with solder termination, the connector has a height above board of 2.70mm. It is suitable for applications requiring reliable, space-saving interconnections in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.40 | $0.40 |
| 100+ | $0.38 | $0.38 |
| 250+ | $0.34 | $0.34 |
| 1,000+ | $0.31 | $0.31 |
| 2,500+ | $0.29 | $0.29 |
| 4,000+ | $0.28 | $0.28 |
| 8,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.00mm.
100V maximum.
Surface mount, right angle.
Yes, a slide lock.
-55°C to 105°C.
