| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| msl_level |

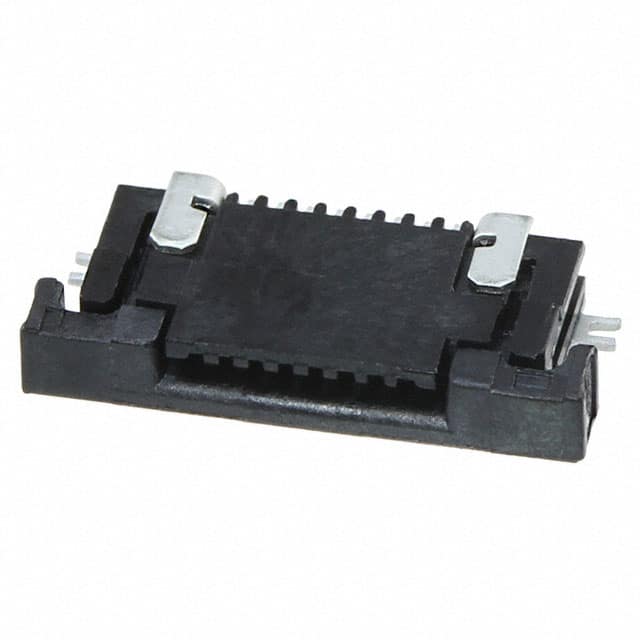

The Amphenol ICC SFV8R-2STE9HLF is a surface mount, right angle FFC/FPC connector featuring 8 positions with a 0.50mm pitch. It accepts flat flexible cables (FFC) or flexible printed circuits (FPC) with a thickness of 0.30mm or 0.33mm. The connector uses a top contact location and a slide lock for secure cable retention.
This connector is rated for 50V and operates over a temperature range of -55°C to 105°C. The housing is made of halogen-free, glass-filled polyamide (nylon) with a UL94 V-0 flammability rating. The actuator is constructed from halogen-free, glass-filled polyphenylene sulfide (PPS). Contacts are phosphor bronze with a tin finish.
Key design features include a zero insertion force (ZIF) mechanism for easy cable insertion without damaging contacts, and solder retention tabs for reliable board-level attachment during reflow soldering. The connector has a height above board of 1.80mm, making it suitable for compact, low-profile applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.56 | $0.56 |
| 25+ | $0.51 | $0.51 |
| 100+ | $0.46 | $0.46 |
| 250+ | $0.36 | $0.36 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.35 | $0.35 |
| 2,500+ | $0.35 | $0.35 |
| 5,000+ | $0.34 | $0.34 |
| 10,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 105°C.
Yes, a slide lock.
0.30mm or 0.33mm.
