| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,260 pcs
|
2260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

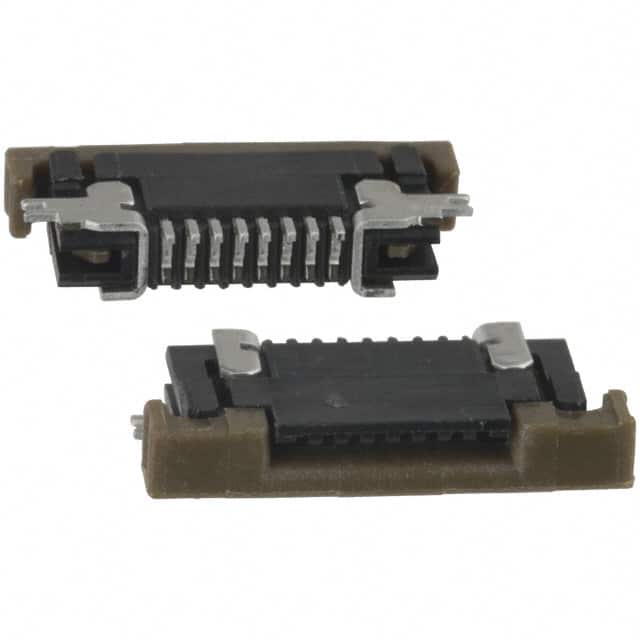

The SFV8R-2STE1LF is an 8-position FFC/FPC connector from Amphenol ICC featuring a 0.50mm pitch and top contact design. It supports both FFC and FPC cable types with straight or tapered ends, accommodating cable thicknesses of 0.30mm and 0.33mm.
This connector uses a surface mount, right-angle mounting style with solder termination. It includes a slide lock for secure cable retention and zero insertion force (ZIF) actuation for easy cable insertion and removal. Solder retention features enhance mechanical stability during assembly.
The housing is made of glass-filled polyamide (PA) nylon, and the actuator is glass-filled polyphenylene sulfide (PPS). Contacts are phosphor bronze with a tin finish. The operating temperature range is -55°C to 105°C, and the material flammability rating is UL94 V-0.
| Qty | Low | High |
|---|---|---|
| 6,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
0.50mm.
50V.
Surface mount, right angle.
-55°C to 105°C.
Yes, it features zero insertion force (ZIF) with a slide lock.
