| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

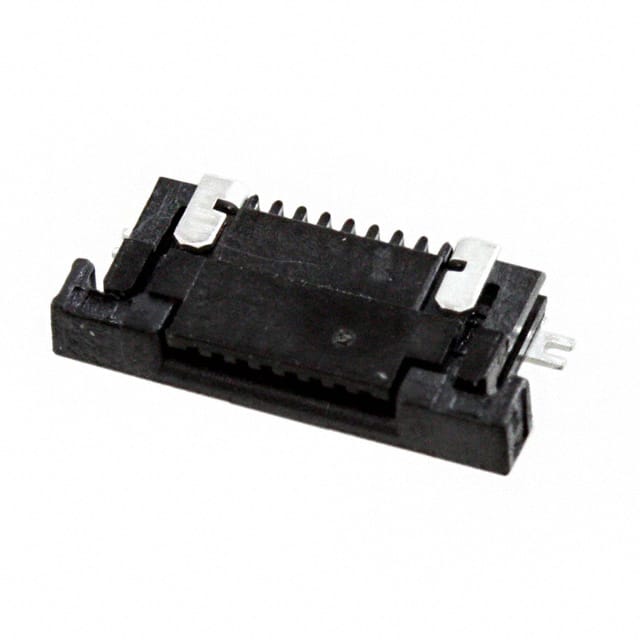

The Amphenol ICC SFV8R-2STBE1HLF is an 8-position FFC/FPC connector with a 0.50mm pitch, designed for surface mount right-angle mounting. It features top-side contacts with gold plating on phosphor bronze terminals for reliable signal integrity. The housing is made of glass-filled polyamide (PA) nylon, halogen-free, with a UL94 V-0 flammability rating. The actuator is constructed from glass-filled polyphenylene sulfide (PPS), also halogen-free. This connector supports FFC and FPC cables with a thickness of 0.30mm and a notched or tabbed end type. It includes a flip lock locking feature for secure cable retention and solder retention for robust board attachment. The operating temperature range is -55°C to 105°C, and it is rated for 50V. This connector is suitable for compact electronic assemblies requiring a low-profile, reliable interconnection solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.25 | $0.25 |
| 6,000+ | $0.24 | $0.24 |
| 12,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -55°C to 105°C.
It has a flip lock actuator.
It supports 0.30mm thick cables.
