| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,325 pcs
|
5325 pcs | On Request | 1 | On Request | On Request | 750 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Failure Rate | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

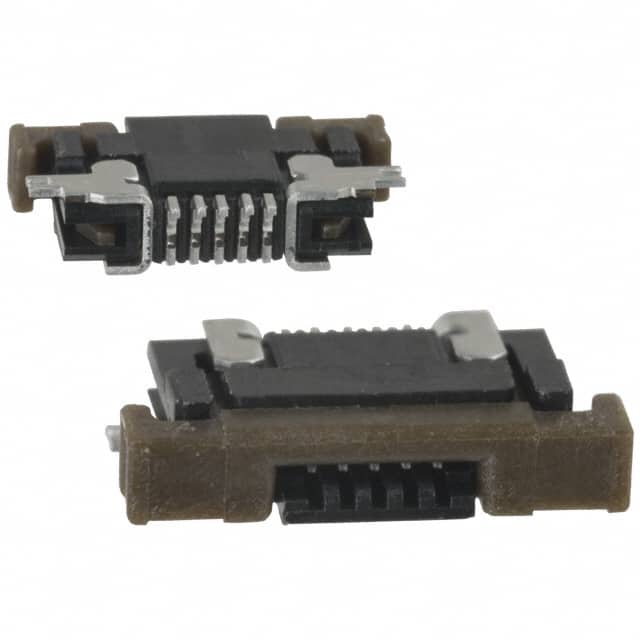

This FFC/FPC connector assembly from Amphenol ICC, part number SFV4R-1STE1LF, offers a 4-position configuration with a 0.5mm pitch. It is designed for bottom contact and features a right-angle surface mount orientation. The connector is constructed with Phosphor Bronze contacts finished in Tin and a housing made of Polyamide (PA), Nylon, Glass Filled, with an actuator material of Polyphenylene Sulfide (PPS), Glass Filled. It operates within a temperature range of -55°C to 105°C and has a voltage rating of 50V.
The SFV4R-1STE1LF is suitable for applications requiring a secure connection, indicated by its Slide Lock feature and Zero Insertion Force (ZIF) capability. The FFC/FPC thickness compatibility is 0.30mm and 0.33mm. The material flammability rating is UL94 V-0, and it is RoHS3 compliant with an MSL of 1.
Designed for efficient board space utilization, this connector assembly is mounted on the surface at a right angle, with a height above the board of 0.071" (1.80mm). The cable end type is straight and tapered, facilitating easy cable insertion. The termination style is solder.
This obsolete part is part of the SFV-R series, offering reliable connectivity for various electronic devices. Its robust construction and specific features make it suitable for applications where space and reliable connections are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SFV4R-1STE1LF connector has 4 positions.
The pitch of the SFV4R-1STE1LF connector is 0.50mm.
The voltage rating for the SFV4R-1STE1LF connector is 50V.
The SFV4R-1STE1LF connector uses a Surface Mount, Right Angle mounting type.
The operating temperature range for the SFV4R-1STE1LF connector is -55°C to 105°C.
The SFV4R-1STE1LF connector supports FFC/FPC thicknesses of 0.30mm and 0.33mm.
Yes, the SFV4R-1STE1LF connector is RoHS3 Compliant.
