| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

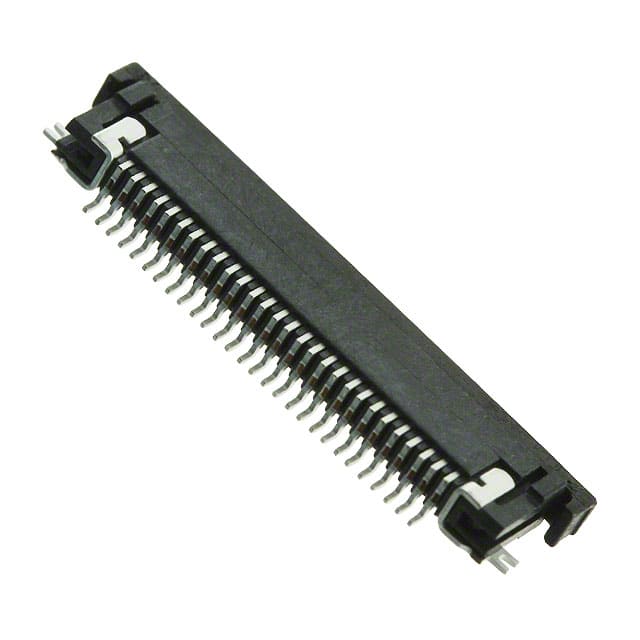

SFV28R-1STE1HLF is a 28-position FFC/FPC connector from Amphenol ICC with a 0.5mm pitch. It features a surface mount, right angle orientation and contacts on the bottom side. The connector utilizes a zero insertion force (ZIF) mechanism with a slide lock for secure cable retention, supporting notched cable ends. The cable thickness is 0.33mm.
Constructed with a liquid crystal polymer (LCP) housing and polyphenylene sulfide (PPS) actuator, both glass filled and halogen free, the connector meets UL94 V-0 flammability rating. Contacts are made of phosphor bronze with tin finish. The operating temperature range is -55°C to 105°C, and the voltage rating is 50V.
This connector is suitable for applications requiring reliable FFC/FPC interconnections in compact electronic assemblies. The right angle design saves board space, and the ZIF feature prevents damage during insertion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.54 | $0.54 |
| 25+ | $0.48 | $0.48 |
| 100+ | $0.46 | $0.46 |
| 250+ | $0.41 | $0.41 |
| 1,000+ | $0.39 | $0.39 |
| 2,500+ | $0.35 | $0.35 |
| 6,000+ | $0.32 | $0.32 |
| 12,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions.
0.5mm (0.020").
Surface mount, right angle.
50V.
-55°C to 105°C.
Yes, a slide lock.
Tin.
