| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | 1109+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

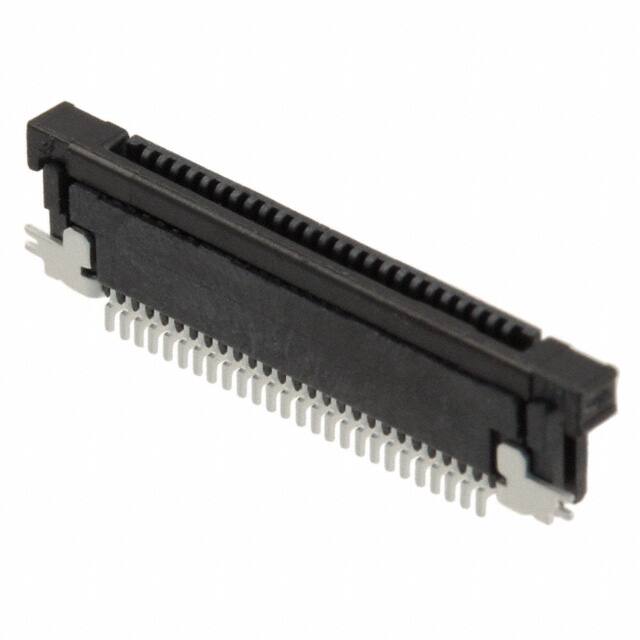

This Amphenol ICC SFV26R-2STE1HLF is a 26-position FFC/FPC connector assembly designed for flexible printed circuit and flat flexible cable connections. It features a 0.50mm pitch and a right-angle surface mount configuration, making it suitable for space-constrained applications.
The connector is built with a Zero Insertion Force (ZIF) mechanism for easy cable insertion and removal, along with a secure slide lock feature. The housing and actuator are constructed from durable, glass-filled, halogen-free materials like Liquid Crystal Polymer (LCP) and Polyphenylene Sulfide (PPS), rated UL94 V-0 for flammability resistance. The contact finish is tin, with phosphor bronze contact material, and it operates within a temperature range of -55°C to 105°C.
Key specifications include a voltage rating of 50V, a height above board of 1.80mm, and a specific FFC/FPC thickness compatibility of 0.33mm. The termination style is solder, and the cable end type is tapered. This connector is ideal for applications requiring reliable and compact FFC/FPC connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
0.5mm (0.020").
50V.
Surface mount, right angle.
Yes, a slide lock.
-55°C to 105°C.
0.33mm.
