| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

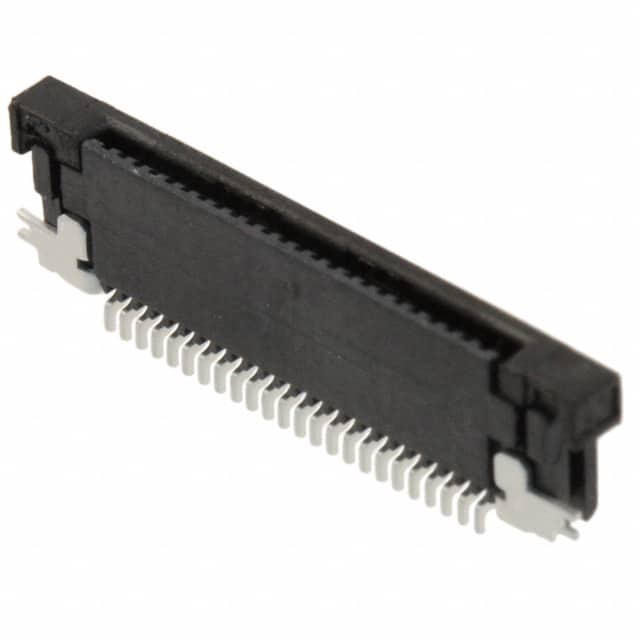

The SFV24R-1STE1HLF is a 24-position FFC/FPC connector from Amphenol ICC featuring a 0.5mm pitch. It is designed for surface mount, right angle mounting with bottom contacts. The connector utilizes a Zero Insertion Force (ZIF) slide lock mechanism for secure cable retention. It accepts FFC/FPC cables with a thickness of 0.30mm or 0.33mm and requires a notched cable end type. The housing is made of halogen-free Liquid Crystal Polymer (LCP) with glass filling, and the actuator is Polyphenylene Sulfide (PPS) also halogen-free. Contacts are phosphor bronze with tin finish. The connector is rated for 50V and operates over -55°C to 105°C. It has a UL94 V-0 flammability rating. This connector is suitable for applications requiring a compact, low-profile interconnect solution in consumer electronics, automotive, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.41 | $0.41 |
| 100+ | $0.40 | $0.40 |
| 250+ | $0.37 | $0.37 |
| 1,000+ | $0.33 | $0.33 |
| 6,000+ | $0.32 | $0.32 |
| 12,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
0.50mm.
50V.
Surface mount, right angle.
-55°C to 105°C.
Yes, slide lock (ZIF).
0.30mm or 0.33mm.
