| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,988 pcs
|
3988 pcs | On Request | 1 | On Request | On Request | 750 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

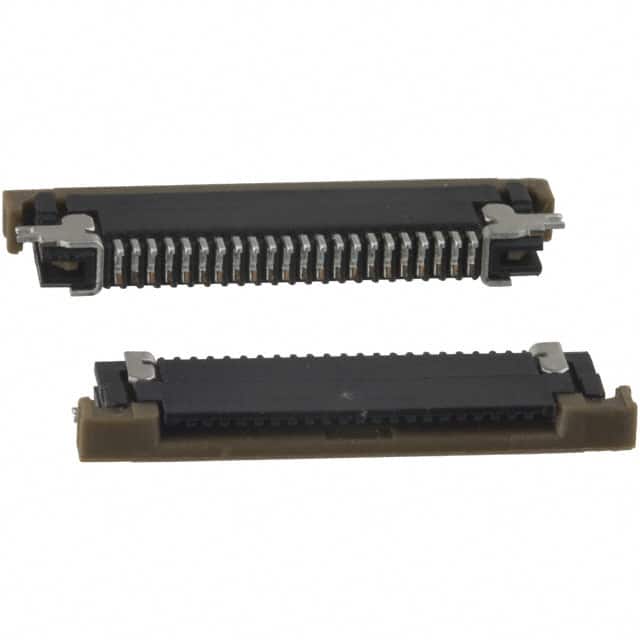

This Amphenol ICC SFV22R-2STE1LF is an FFC/FPC connector designed for reliable connections in various electronic applications. It features 22 positions with a 0.50mm pitch, facilitating compact board designs.
The connector supports a 50V voltage rating and utilizes a solder termination method. Its mounting type is surface mount with a right-angle orientation, suitable for space-constrained environments. The housing is constructed from glass-filled Polyamide (PA), Nylon, and the actuator is made of glass-filled Polyphenylene Sulfide (PPS), offering durability and thermal stability.
Key features include a slide lock for secure mating and a height above the board of 1.80mm. The contact material is Phosphor Bronze with a Tin finish. The operating temperature range is -55°C to 105°C, and the material has a UL94 V-0 flammability rating.
This connector is designed for FFC/FPC types and includes features like solder retention and Zero Insertion Force (ZIF) for ease of use during assembly and maintenance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions.
0.50mm (0.020").
50V.
Surface Mount, Right Angle.
Yes, a slide lock mechanism.
-55°C to 105°C.
Housing: glass-filled polyamide (PA) nylon; Actuator: glass-filled polyphenylene sulfide (PPS); Contacts: phosphor bronze with tin finish.
