| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,950 pcs
|
4950 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

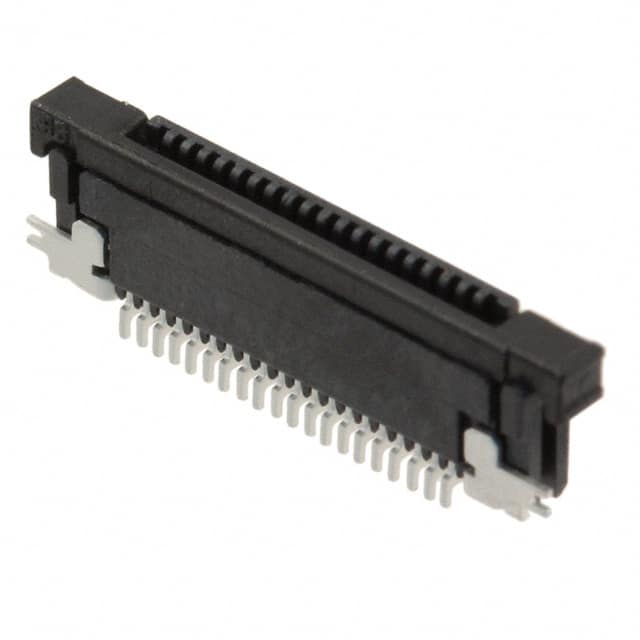

This FFC/FPC connector assembly from Amphenol ICC, part number SFV20R-2STE1HLF, offers 20 positions with a 0.50mm pitch. It is designed for surface mount right angle applications and incorporates a Zero Insertion Force (ZIF) mechanism for ease of use.
The connector is constructed with Liquid Crystal Polymer (LCP) and Polyphenylene Sulfide (PPS) for housing and actuator materials, respectively, both glass-filled and halogen-free. The contact finish is Tin, and the contact material is Phosphor Bronze. It has a voltage rating of 50V and operates within a temperature range of -55°C to 105°C.
The housing material meets a UL94 V-0 flammability rating. The connector supports FFC/FPC thicknesses of 0.30mm and 0.33mm and has a height above the board of 1.80mm. It features a slide lock for secure connection and a notched cable end type.
This connector is suitable for applications requiring reliable and easy connection of flexible flat cables. Its robust construction and specific features make it a component for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions.
The pitch is 0.50mm (0.020").
The voltage rating is 50V.
Surface mount, right angle.
-55°C to 105°C.
It accepts 0.30mm and 0.33mm thick cables.
It has a slide lock.
