| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

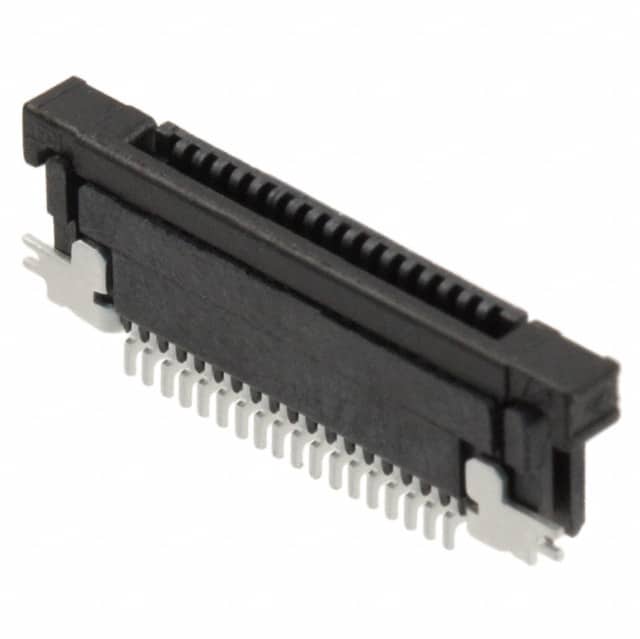

The SFV18R-2STE1HLF is an 18-position, 0.5mm pitch FFC/FPC connector from Amphenol ICC. It features a surface mount, right angle orientation with top contact design. The connector includes a flip lock mechanism for secure cable retention and zero insertion force (ZIF) for easy cable insertion.
The connector is rated for 50V DC operation and has an operating temperature range of -55°C to 105°C. It accepts FFC or FPC cables with a thickness of 0.30mm and requires a notched or tabbed cable end type. The contacts are made of phosphor bronze with tin finish, ensuring reliable electrical performance.
The housing is made of liquid crystal polymer (LCP) glass filled, halogen free, and the actuator is polyphenylene sulfide (PPS) glass filled, halogen free. The material flammability rating is UL94 V-0. The connector also features solder retention for reliable mounting on the PCB.
This connector is suitable for applications requiring compact, high-density interconnections, such as consumer electronics, automotive systems, and industrial control equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.46 | $0.46 |
| 25+ | $0.41 | $0.41 |
| 100+ | $0.39 | $0.39 |
| 250+ | $0.35 | $0.35 |
| 1,000+ | $0.33 | $0.33 |
| 2,500+ | $0.31 | $0.31 |
| 6,000+ | $0.28 | $0.28 |
| 12,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions.
0.50mm (0.020").
50V.
Surface Mount, Right Angle.
-55°C to 105°C.
Flip Lock.
Top contact.
