| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

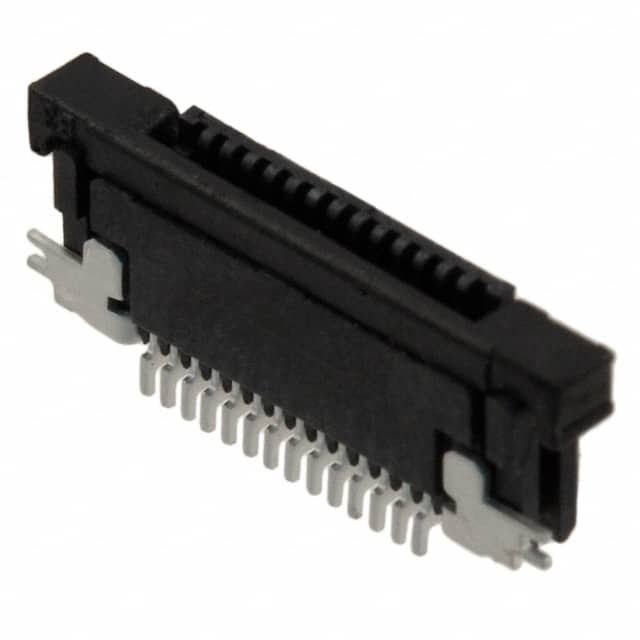

The SFV14R-2STE1HLF is a 14-position FFC/FPC connector from Amphenol ICC's SFV series, featuring a 0.5mm pitch and surface mount right angle orientation. It supports Zero Insertion Force (ZIF) operation with a slide lock actuator for secure cable retention. The connector accepts FFC/FPC cables with a thickness of 0.30mm or 0.33mm and uses a notched cable end type.
The housing is made of halogen-free, glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, while the actuator is halogen-free, glass-filled Polyphenylene Sulfide (PPS). Contacts are tin-plated phosphor bronze. The component operates over a temperature range of -55°C to 105°C and is rated for 50V. The height above board is 0.071 inches (1.80mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.42 | $0.42 |
| 25+ | $0.38 | $0.38 |
| 100+ | $0.36 | $0.36 |
| 250+ | $0.32 | $0.32 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.26 | $0.26 |
| 6,000+ | $0.22 | $0.22 |
| 12,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
0.50mm (0.020 inches).
Surface mount, right angle.
50V.
-55°C to 105°C.
