| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,023 pcs
|
1023 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

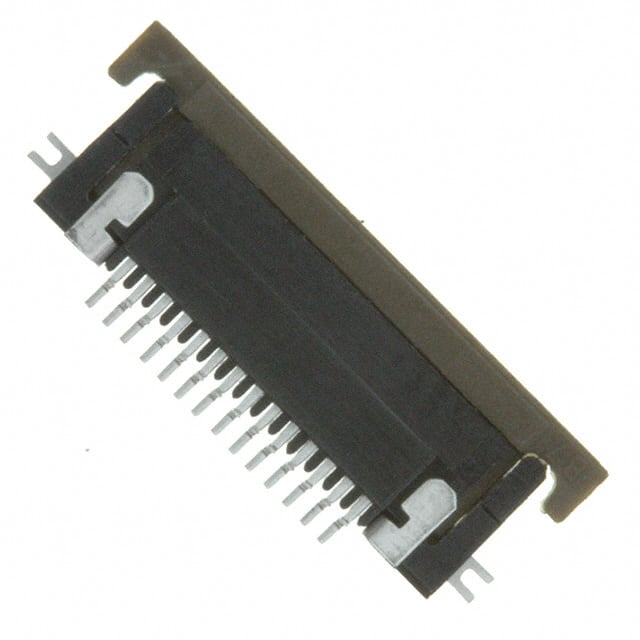

This Amphenol ICC SFV14R-1STE1LF is a 14-position FFC/FPC connector assembly designed for surface mount right angle applications. It utilizes a 0.50mm pitch and features solder termination.
The connector operates within a temperature range of -55°C to 105°C and has a voltage rating of 50V. The FFC/FPC thickness compatibility is 0.30mm and 0.33mm. The housing material is Polyamide (PA), Nylon, Glass Filled, with a flammability rating of UL94 V-0. The contact finish is Tin, and the contact material is Phosphor Bronze.
Key features include a slide lock mechanism for secure connection and zero insertion force (ZIF) capability, along with solder retention. The height above the board is 1.80mm (0.071"). This connector is suitable for applications requiring reliable and compact flexible circuit connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
0.5mm.
50V.
Surface Mount, Right Angle.
-55°C to 105°C.
Yes, it has a slide lock.
Yes, it features Zero Insertion Force (ZIF).
