| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

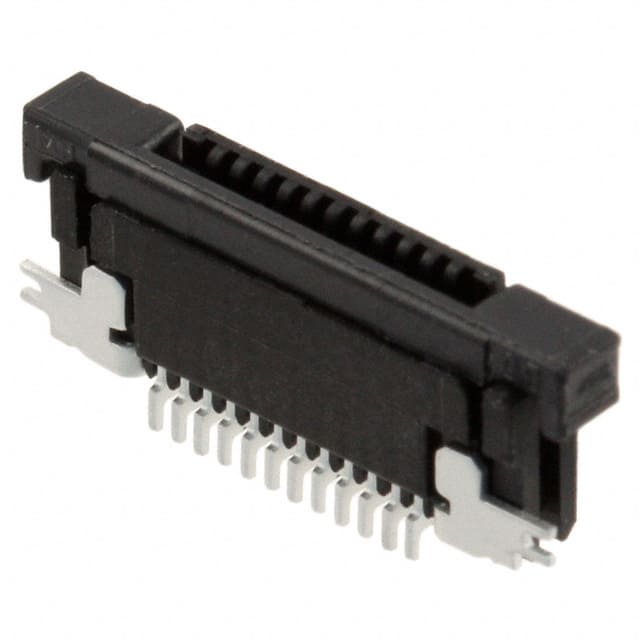

The SFV12R-2STE1HLF is a 12-position FFC/FPC connector from Amphenol ICC with a 0.5mm pitch. It features a right angle surface mount design with top contacts, suitable for notched or tabbed flat flexible cables up to 0.30mm thickness. The connector uses a flip lock actuator for secure cable retention and includes a zero insertion force (ZIF) mechanism for easy insertion.
The contacts are made of phosphor bronze with a tin finish, while the housing is constructed from halogen-free glass-filled polyamide (PA) nylon with a UL94 V-0 flammability rating. The actuator material is halogen-free glass-filled polyphenylene sulfide (PPS). The connector has a height above board of 1.80mm and includes solder retention features for reliable reflow soldering.
Electrical rating is 50V, and the operating temperature range spans -55°C to 105°C. This connector is designed for high-density PCB applications requiring a compact, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 10+ | $0.37 | $0.37 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.28 | $0.28 |
| 2,500+ | $0.28 | $0.28 |
| 6,000+ | $0.26 | $0.26 |
| 12,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 105°C.
UL94 V-0.
Flip lock actuator.
