| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

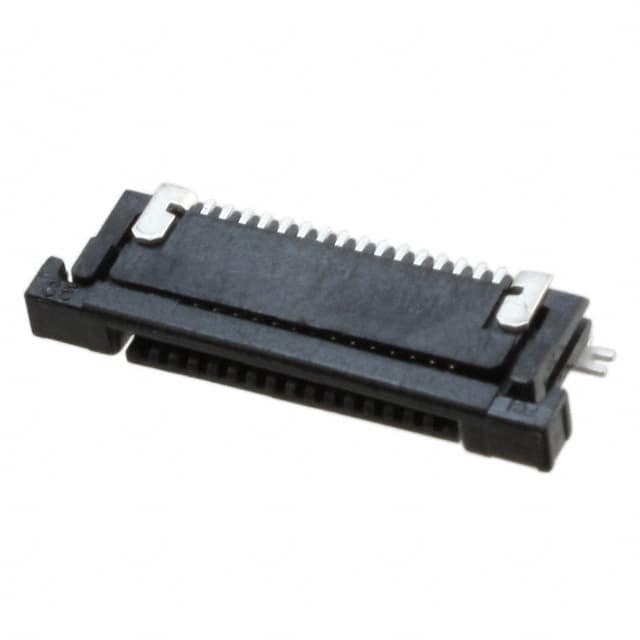

The SFV12R-1STE1HLF is a 12-position, 0.5mm pitch FFC/FPC connector from Amphenol ICC. It features bottom contacts in a right-angle surface mount configuration, with a zero insertion force (ZIF) slide lock for secure and easy cable insertion. The connector accepts FFC/FPC cables with thicknesses of 0.30mm and 0.33mm, and supports straight or tapered cable ends.
The housing is made of polyamide (nylon) glass-filled material, halogen-free, with a UL94 V-0 flammability rating. The actuator is polyphenylene sulfide (PPS) glass-filled, also halogen-free. Contacts are phosphor bronze with tin plating. Electrical rating is 50V, and the operating temperature range spans -55°C to 105°C. This connector is designed for reliable interconnection in space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.37 | $0.37 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.26 | $0.26 |
| 2,500+ | $0.25 | $0.25 |
| 6,000+ | $0.25 | $0.25 |
| 12,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 105°C.
Slide lock.
Yes, RoHS3 compliant (unverified).
