| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,980 pcs
|
1980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

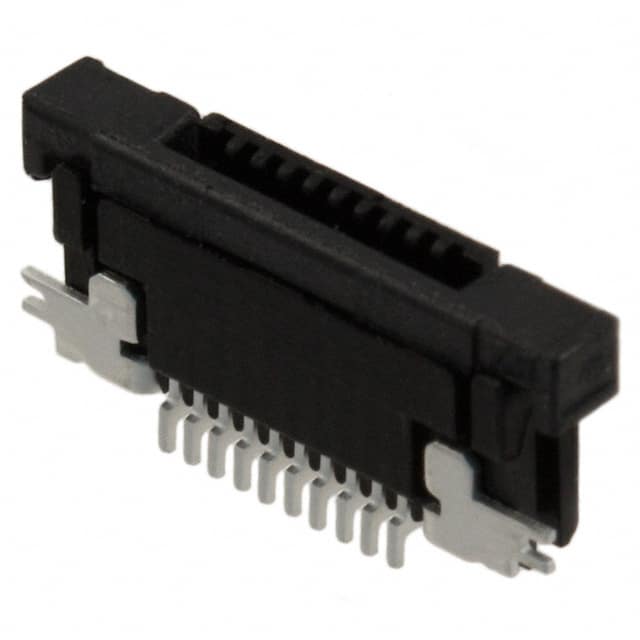

The Amphenol ICC SFV10R-2STE1HLF is a 10-position FFC/FPC connector featuring a 0.50mm pitch. It is designed for surface mount, right angle mounting, making it suitable for compact, space-constrained PCB layouts. The connector uses a top contact style and supports FFC/FPC cables with a thickness of 0.30mm.
This connector includes a flip lock actuator for secure cable retention and features zero insertion force (ZIF) for easy cable insertion and removal. Solder retention features help ensure reliable mechanical attachment during the soldering process. The housing is made from halogen-free, glass-filled polyamide (nylon), and the actuator is made from halogen-free, glass-filled polyphenylene sulfide (PPS).
The contacts are made of phosphor bronze with a tin finish. The connector is rated for 50V and has an operating temperature range of -55°C to 105°C. The housing material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.35 | $0.35 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.25 | $0.25 |
| 2,500+ | $0.23 | $0.23 |
| 6,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SFV10R-2STE1HLF has 10 positions.
The pitch is 0.50mm.
The mounting type is surface mount, right angle.
The voltage rating is 50V.
It uses a flip lock locking feature.
The operating temperature range is -55°C to 105°C.
The contact finish is tin.
