| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

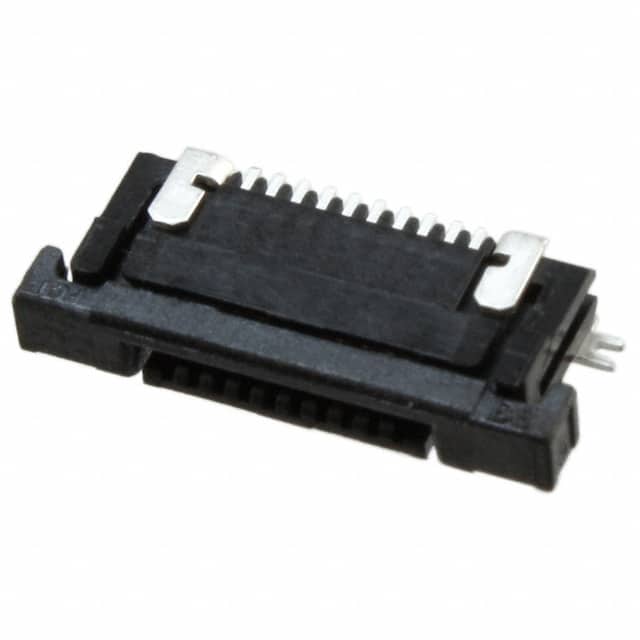

The SFV10R-1STE1HLF is a 10-position FFC/FPC connector from Amphenol ICC featuring a 0.5mm pitch. It utilizes a zero insertion force (ZIF) slide lock mechanism for secure cable retention. The connector accepts FFC/FPC cables with a thickness of 0.30mm or 0.33mm and supports straight or tapered cable ends.
This connector is designed for surface mount right angle mounting, with bottom contacts for reliable electrical connection. The contacts are made of phosphor bronze with a tin finish, and the housing is constructed from halogen-free glass-filled polyamide (nylon) with a UL94 V-0 flammability rating. The actuator is made of halogen-free glass-filled polyphenylene sulfide (PPS).
Electrical rating is 50V. The operating temperature range is -55°C to 105°C. The height above board is 1.80mm, making it suitable for compact designs. The connector is RoHS3 and REACH compliant (unverified), and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.35 | $0.35 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.30 | $0.30 |
| 1,000+ | $0.28 | $0.28 |
| 2,500+ | $0.23 | $0.23 |
| 6,000+ | $0.21 | $0.21 |
| 12,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 105°C.
Yes, a slide lock.
Tin.
