| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | NA | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Filter Type | |
| Frequency | |
| Height | |
| Height (Max) | |
| Impedance | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Width |

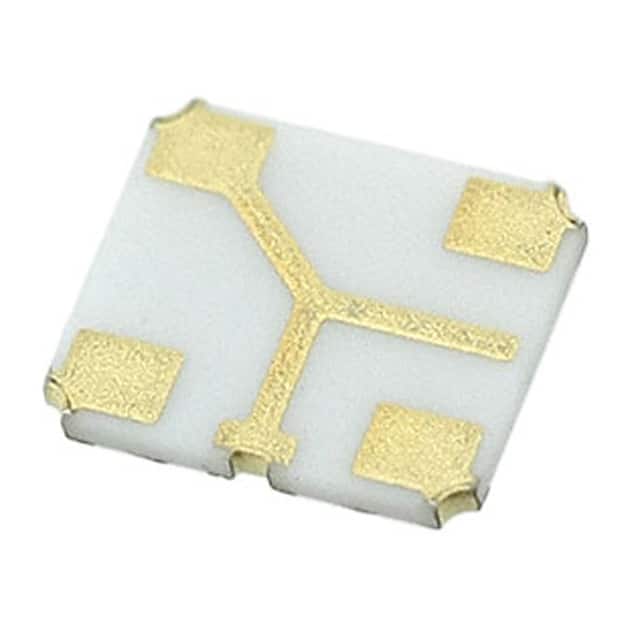

The Murata SFSCE10M7WF05-R0 is a ceramic filter designed for IF applications, specifically for FM signals. It operates with a nominal center frequency of 10.7MHz and offers a bandwidth of 325 kHz. The filter has a typical insertion loss of 6dB and an impedance of 470 Ohms.
This component is designed for surface mount applications and comes in a compact package measuring 4.50mm in length and 3.80mm in width, with a maximum height of 1.00mm. The package type is specified as 1715 (4538 Metric) with 4 PC pads.
It is suitable for various electronic circuits requiring precise frequency filtering. The RoHS status is compliant, and it has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The center frequency is 10.7MHz.
The bandwidth is 325kHz.
The insertion loss is 6dB.
The impedance is 470Ohm.
The package is 1715 (4538 Metric) with dimensions 4.50mm x 3.80mm and a maximum height of 1.00mm.
This is an FM ceramic filter.
Surface mount.
