| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cooling Type | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

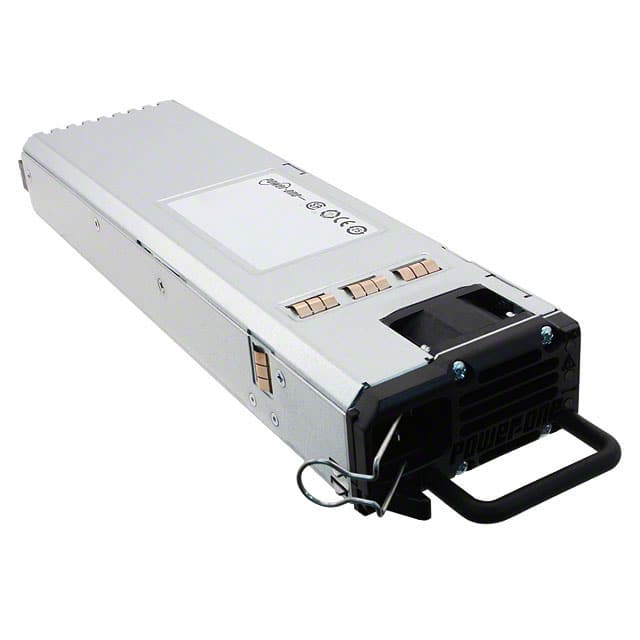

The Bel Power Solutions SFP650-12BG is a front-end AC-DC converter designed for ITE (Commercial) applications. It delivers a robust 650W of power with a single 12VDC output capable of supplying up to 53.3A. The unit operates across a wide input voltage range of 90 to 264 VAC, ensuring versatility in different power environments.
Designed for efficient operation, it boasts an efficiency of 86% and utilizes convection cooling to maintain optimal temperatures within its operating range of 0°C to 50°C. The converter features adjustable output, I²C™ interface, load sharing, PFC, standby output, and universal input capabilities, making it a flexible solution for various system integrations.
With dimensions of 337.4mm x 78mm x 40mm, it is designed for rack mounting, facilitating easy integration into standard equipment racks. The package is enclosed for protection and reliability. This AC-DC converter is RoHS3 compliant.
The SFP650-12BG provides 650W of power.
The output voltage is 12 VDC.
The operating temperature range is 0°C to 50°C.
It uses convection cooling.
The dimensions are 337.4 x 78 x 40 mm.
It supports rack mount.
The SFP650-12BG is RoHS3 Compliant.
