| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Clock Frequency | |
| Connector Type | |
| Data Rate | |
| Line Frequency | |
| Mounting Type | |
| Operating Current (Typical @ 1000 Base-T) | |
| Operating Current (Typical/Maximum @ 10/100 Base-T) | |
| Operating Temperature (Minimum/Maximum) | |
| Power Consumption | |
| RMS Phase Jitter | |
| Rise & Fall Time | |
| Rx Output Impedance | |
| Storage Temperature | |
| Storage Temperature (Minimum/Maximum) | |
| Supply Voltage | |
| TX Output Impedance | |
| Tape & Reel | |
| Voltage |

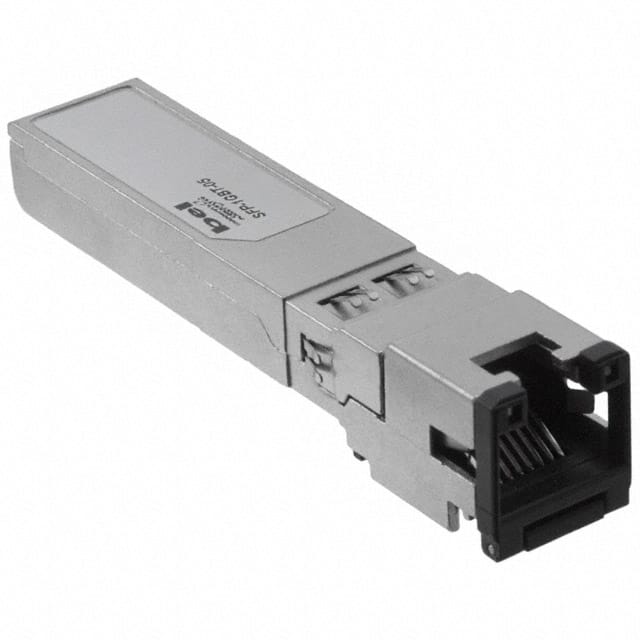

The Bel Fuse SFP-1GBT-05 is a copper SFP transceiver module designed for SGMII host interfaces, operating at data rates of 10/100/1000Base-T. It utilizes the Broadcom BCM54616S chipset and complies with IEEE 802.3, 802.3u, and 802.3ab specifications, as well as Multi-Source Agreement (MSA) standards for SFP transceivers.
This transceiver supports auto-negotiation features, allowing networking equipment to automatically adjust settings for optimal performance. It is built for demanding environments, operating within an extended temperature range of -40°C to +85°C. The module features automatic dependent interface (DI) crossover, eliminating the need for crossover cables or MDIX ports, and is assembled with low EMI emission components and fully metallic housings for reduced radiated emissions.
The SFP-1GBT-05 offers a compact RJ45 connector assembly and a bail latch for easy extraction. Its applications include 10/100/1000 Mbps data transmission over Category 5/5e cable up to 100 meters, making it suitable for industrial temperature environments, networking equipment, switch-to-switch interfaces, and routers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the SFP-1GBT-05 is 3.3VDC.
The SFP-1GBT-05 operates in an extended temperature range from -40°C to +85°C.
The SFP-1GBT-05 supports data rates of 10/100/1000Base-T.
The SFP-1GBT-05 uses an RJ45 connector.
The typical power consumption of the SFP-1GBT-05 is 610mW.
